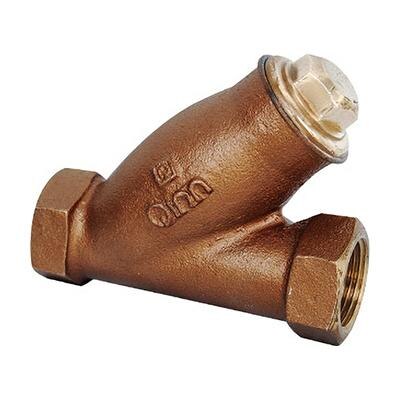

PRODUCT DETAILS FULL FLOW, BOLED BONNET ,DRAIN PLUG FOR CLEANING AND WITH NON-MAGNETIC (SS-304) SCREEN END DETAILS FLANGED ENDS TO BS:4504 PN10 OR BS:10 TABLE ‘H’ TESTING HYDRAULIC.-300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY CAST IRON BS:1452,Gr200 2 STRAINER/SCREEN S.S AISI-304 3 GASKET C.A.F —– 4 BONNET CAST IRON BS:1452,Gr200 5 STUDS AND NUTS CARBON STEEL BS:916 6 GASKET CAF —– 7 DTAIN PLUG CAST IRON BS:1452,Gr200 DIMENSIONS IN mm NOMINAL SIZE L+1.0 ∅B ∅D~ H~ T~ 25mm 156 24 115 115 14 32mm 180 30 140 130 16 40mm 192 38 150 145 16 50mm 220 48 165 155 18 65mm 285 63 185 190 19 80mm 300 78 200 230 19 100mm 384 98 220 260 24 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTIC
