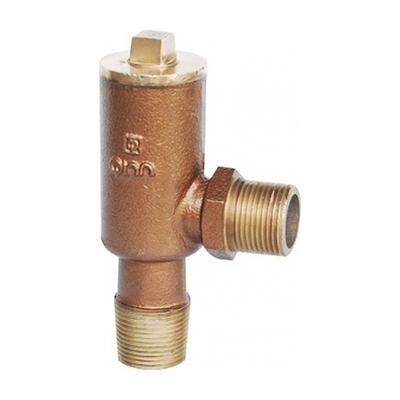

Ferrule Cock
PRODUCT DETAILS BRONZE FERRULE COCK ‘JCSWR’ PATTERN END DETAILS MALE INLET BSP TAPER MALE OUTLET BSP PARALLEL TESTING (HYD.) BODY TEST PRESSURE:-300psig. SEAT TEST PRESSURE:-300psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BONNET BRONZE BS:1400 LG2 2 GASKET CAF —– 3 SEAT BRONZE BS:1400 LG2 4 BODY BRONZE BS:1400 LG2 DIMENSIONS IN mm S.NO. NOMINAL SIZE ∅A ∅B H~ L 1 15mm 1/2″BSP 1/2″BSP T 45 120 2 20mm 3/4″BSP 3/4″BSP T 65 139 3 25mm 1″BSP 1″BSP T 77 154 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
