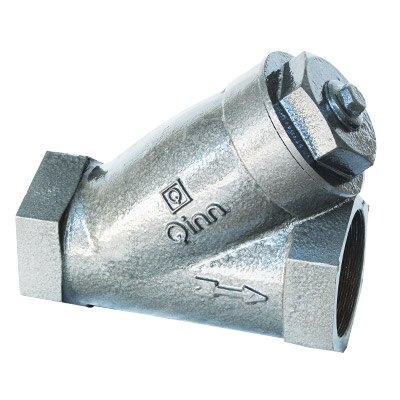

Q-82 – Qinn CAST IRON Y-TYPE STRAINER

PRODUCT DETAILS

FULL FLOW, BOLED BONNET ,DRAIN PLUG FOR CLEANING AND WITH NON-MAGNETIC (SS-304) SCREEN

END DETAILS

FLANGED ENDS TO BS:4504 PN10 OR BS:10 TABLE ‘H’

TESTING

HYDRAULIC.-300 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS:1452,Gr200

2 STRAINER/SCREEN S.S AISI-304

3 GASKET C.A.F —–

4 BONNET CAST IRON BS:1452,Gr200

5 STUDS AND NUTS CARBON STEEL BS:916

6 GASKET CAF —–

7 DTAIN PLUG CAST IRON BS:1452,Gr200

DIMENSIONS IN mm

NOMINAL SIZE L+1.0 ∅B ∅D~ H~ T~

25mm 156 24 115 115 14

32mm 180 30 140 130 16

40mm 192 38 150 145 16

50mm 220 48 165 155 18

65mm 285 63 185 190 19

80mm 300 78 200 230 19

100mm 384 98 220 260 24

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTIC
