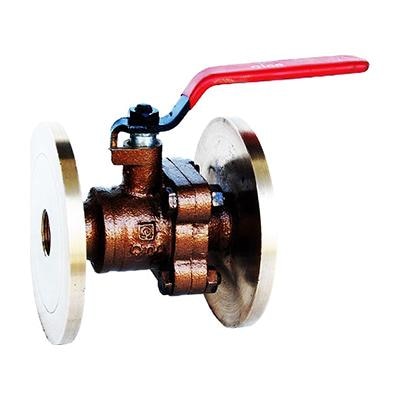

PRODUCT DETAILS TWO PIECE DESIGN, FULL BORE, TEFLON SEATS & SEAL, S.S.BALL & STEM AND BLOW OFF PROOF STEM WITH LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘D’ TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE M.S —– 2 STEM NUT CARBON STEEL EN-8 3 GLAND NUT CARBON STEEL EN-8 4 GLAND PACKING TEFLON PTFE 5 STEM SEAL TEFLON PTFE 6 SEAT TEFLON PTFE 7 BALL SS ——– 8 BODY BRONZE BS:1400 LG2 9 STEM S.S. AISI-410 10 CONNECTOR BRONZE BS:1400 LG2 11 BOLT/NUT CARBON STEEL BS: 916 12 SEALING RUBBER NITRILE DIMENSIONS IN mm NOMINAL SIZE ∅A L H~ ∅F T D~ 15mm 13.5 83 74 95.3 6.4 110 20mm 17.5 95 74 101.6 6.4 110 25mm 23.5 105 80 114.3 8.0 132 32mm 29 120 100 120.7 8.0 152 40mm 38 125 110 133.4 9.6 170 50mm 48 157 125 152.4 9..6 210 *65mm 63 172 135 165.1 11.2 250 *80mm 77 210 145 184.2 13.0 327 *100mm 98 238 155 216 16.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
