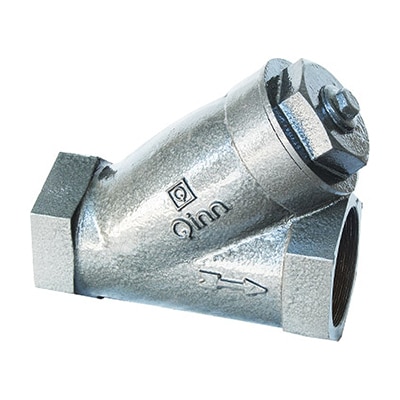

Q-207 – Qinn CAST IRON ‘Y’ TYPE STRAINER

PRODUCT DETAILS

STAINLESS STEEL PERFORATED SHEET SCREEN, SCREWED IN COVER WITH RELEASE PLUG.

END DETAILS

SCREWED FEMALE ENDS BSP PARALLEL TO BS:21

WORKING PRESSURE

SUITABLE FOR STEAM UP TO 186 psig.

(13 Kg/cm2)

MAX. WORKING TEMP. 220°C

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS:1452,Gr200

2 STRAINER/SCREEN S.S AISI-304

3 GASKET C.A.F —–

4 BONNET CAST IRON BS:1452,Gr200

5 STUDS AND NUTS CARBON STEEL BS:916

6 GASKET CAF —–

7 DTAIN PLUG CAST IRON BS:1452,Gr200

DIMENSIONS IN mm

NOMINAL SIZE ∅A L(+1.5) H~

15mm 1/2″BSP 96 56

20mm 3/4″BSP 115 66

25mm 1″BSP 132 76

32mm 1.1/4″BSP 155 82

40mm 1.1/2″BSP 173 112

50mm 2″BSP 215 123

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
