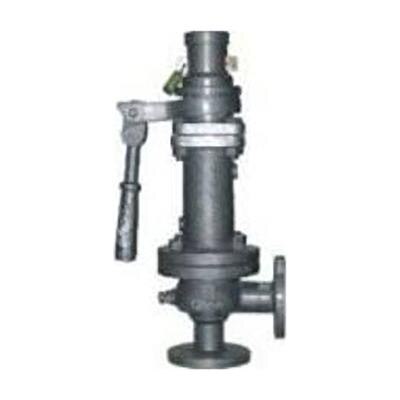

PRODUCT DETAILS ANGLE TYPE WITH SS(AISI-410)/ MONEL SEAT AND SS STEM. END DETAILS INLET-FLANGED TO BS:10 TABLE ‘F’ OUTLET-FLANGED TO BS:10 TABLE ‘D’ WORKING MAX BOP 150psig AND MAX WORKING TEMP 220° C TESTING (HYD.) 370 Psig. HYDRAULIC. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 CAP C.I. BS:1452 Gr220 2 COTTER BRONZE BS:1400 LG2 3 LEVER C.I. BS:1452 Gr220 4 LOCKING NUT BRONZE BS:1400 LG2 5 COVER C.I. BS:1452 Gr220 6 BUSH BRONZE BS:1400 LG2 7 ADJUSTING SCREW BRONZE BS:1400 LG2 8 UPPER SPRING DISC C.I. BS:1452 Gr220 9 SPRING CHAMBER C.I. BS:1452 Gr220 10 STEM S.S. AISI-410 11 LOWER SPRING DISC C.I. BS:1452 Gr220 12 BUSH BRONZE BS:1400 LG2 13 GASKET CAF —————- 14 SPRING SPRING STEEL BS: 1726 EN47 15 GASKET CAF —————- 16 DISC S.S. AISI-410 17 DISC NUT BRONZE BS:1400 LG2 18 SCREW AND NUT BRASS BS: 2874 CZ114 19 BODY SEAT RING S.S. AISI-410 20 BODY C.I. BS:1452 Gr220 21 REGULATING RING BRONZE BS:1400 LG2 22 BOLTS AND NUTS CARBON STEEL BS:936 23 STUDS AND NUTS CARBON STEEL BS:936 DIMENSIONS IN mm NOMINAL SIZE ∅A B T ∅D L H~ 25MM 25 108 12.7 120.6 89 455 40MM 38 120.6 15.8 139.7 101.6 525 50MM 50 137.5 137.5 165.1 120.6 580 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
