controlable sdnr valves manufacutrer in mumbai

product image
Controlable/SDNR Valves

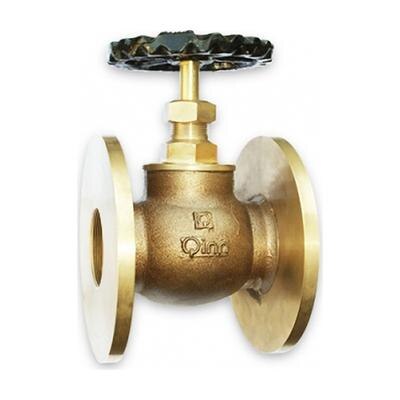

Q-28 A – Qinn BRONZE GLOBE STOP CUM NON RETURN (SDNR) VALVE – NO. 8

PRODUCT DETAILS SCREWED IN BONNET, INSIDE SCREW, RISING STEM HAVING INTEGRAL SEAT & BRASS STEM. END DETAILS FLANGED END TO BS:10 TABLE D/E; AND ALSO AVAILABLE IN PN-10/16, JIS 5K, 10K, ON DEMAND. WORKING PRESSURE SUITABLE FOR HYDRAULIC LINE BS:4504, PN-10. TESTING HYDRAULIC BODY TEST PRESSURE :- 300 psig. SEAT TEST PRESSURE :- 200 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL C.I. BS:1452 Gr.220 4 STEM BRASS BS:2872 CZ114 5 GLAND BRONZE BS:1400 LG2 6 GLAND NUT BRONZE BS:1400 LG2 7 PACKING ASBESTOS … 8 BONNET BRONZE BS:1400 LG2 9 DISC BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅B L(+1.5) T H (APX) W~ 15mm 95.3 14 56 6.30 76 64 20mm 101.6 18 69 6.30 83 64 25mm 114.3 23 85 8.00 96 76 32mm 120.7 30 90 8.00 112 85 40mm 133.4 38 100 9.50 125 100 50mm 152.4 47 109 9.50 134 100 65mm 165.1 63 140 11.20 164 125 80mm 184 76 170 12.70 190 125 100mm 216 97 200 15.80 215 150 125mm 254 121 … 17.5 … 250 150mm 280 145 260 17.5 320 260 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

Send Message
product image
Controlable/SDNR Valves

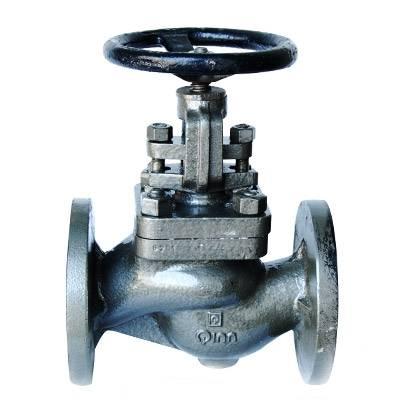

Q-205 S – Qinn CAST IRON GLOBE STEAM STOP CUM NRV

PRODUCT DETAILS BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE STAINLESS STEEL (AISI 410) TRIM, HAND WHEEL OPERATED. END DETAILS FLANGED TO DIN 2533 RF, PN16 FOR SIZE UPTO 150mm. FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm. WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS-5152, MAX. WORKING TEMP.220ºC(428ºF) TESTING HYDRAULIC. TEST PRESSURE :- 26bar (377psig. hyd.) for size up to 150mm TEST PRESSURE :- 16bar (232 psig. hyd.) for size 200mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HANDWHEEL CAST IRON BS:1452 Gr.220 4 YOKE BUSH ALUMINIUM BRONZE BS:1400 AB1C 5 LOCKING SCREW CARBON STEEL BS: 916 6 GLAND CAST IRON BS:1452 Gr.220 7 PACKING ASBESTOS GRAPHITED —– 8 BONNET CAST IRON BS:1452 Gr.220 9 DISC NUT BRONZE BS:1400 LG2 10 DISC STAINLESS STEEL AISI-410 11 BODY CAST IRON BS:1452 Gr.220 12 STEM STAINLESS STEEL AISI-410 13 STUD & NUTS CARBON STEEL BS:916 14 GASKET C.A.F —– 15 BODY SEAT RING STAINLESS STEEL AISI-410 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅E ∅F T B L* H ∅W~ 15mm 15 45 95 14 2 130 162 100 20mm 20 58 105 16 2 150 165 100 25mm 25 68 115 16 2 160 175 100 32mm 32 78 140 18 2 180 190 125 40mm 40 88 150 18 3 200 240 160 50mm 50 102 165 20 3 230 255 160 65mm 65 122 185 20 3 290 285 200 80mm 80 138 200 22 3 310 310 200 100mm 100 158 220 24 3 350 350 250 125mm 125 188 250 26 3 400 425 250 150mm 150 212 285 26 3 480 485 310 200mm 200 268 340 26 3 600 590 400 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

Send Message
product image
Controlable/SDNR Valves

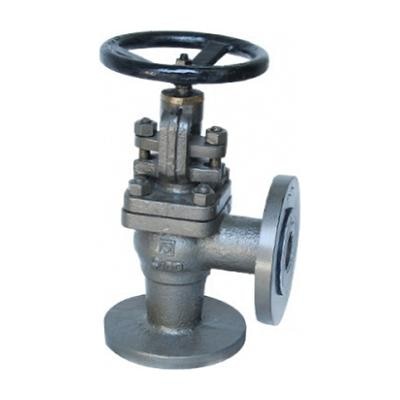

Q-205 A – Qinn CAST IRON JUNCTION STEAM STOP CUM NRV

PRODUCT DETAILS RIGHT ANGLE PATTERN, BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE SS(AISI 410) WORKING PARTS, HAND WHEEL OPERATED. END DETAILS FLANGED TO DIN 2533 RF, PN16 FOR SIZE UPTO 150mm. FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm. WORKING PRESSURE SUITABLE FOR STEAM LINE NOMINAL PRESSURE RATING PN-16/10, CONFORMING TO BS-5152, MAX. WORKING TEMP.220ºC(428ºF) TESTING HYDRAULIC. TEST PRESSURE :- 26bar (377psig. hyd.) for size up to 150mm TEST PRESSURE :- 16bar (232 psig. hyd.) for size 200mm MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HAND WHEEL CAST IRON BS:1452 Gr.220 2 STEM STAINLESS STEEL AISI-410 3 BONNET CAST IRON BS:1452 Gr.220 4 GLAND CAST IRON BS:1452 Gr.220 5 GLAND PACKING ASBESTOS GRAPHITED —– 6 GASKET C.A.F. —– 7 SEAT NUT BRONZE BS:1400 LG2 8 SEAT STAINLESS STEEL AISI-410 9 BODY RING STAINLESS STEEL AISI-410 10 BODY CAST IRON BS:1452 Gr.220 11 NUT CARBON STEEL BS:916 12 WASHER CARBON STEEL —– 13 LOCKING SCREW CARBON STEEL BS:916 14 YOKE BUSH ALUMINUM BRONZE BS:1400 AB1C 15 STUDS & NUTS CARBON STEEL BS:916

Send Message
product image
Controlable/SDNR Valves

Q-127 S – Qinn BRONZE CONTROLLABLE FEED CHECK VALVE

PRODUCT DETAILS STRAIGHT PATTERN, SCREWED IN BONNET, OUT SIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS (BOLTED BONNET FOR SIZE 40mm & 50mm) END DETAILS FLANGED ENDS TO BS:10 TABLE ‘H’ TESTING 500 psig. (HYDRAULIC) WORKING PRESSURE SUITABLE FOR STEAM LINE UP TO 250psig.(17.58 kg/cm) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS … 8 GASKET STEAM JOINTING … 9 BODY BRONZE BS:1400 LG2 10 DISC S.S. AISI-410 11 BODY SEAT RING S.S. AISI-410 12 STUDS & NUTS CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B ∅D T L H~ ∅W 15mm 12.7 114.3 10.0 102.0 115.0 90.0 20mm 19.0 114.3 10.0 114.0 115.0 95.0 25mm 25.0 120.6 12.0 127.0 138.0 102.0 32mm 32.0 133.3 12.0 140.0 160.0 127.0 40mm 38.0 139.7 12.0 152.0 170.0 127.0 50mm 50.0 165.1 13.0 178.0 195.0 150.0 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

Send Message
product image
Controlable/SDNR Valves

Q-127 A – Qinn BRONZE CONTROLLABLE FEED CHECK VALVE

PRODUCT DETAILS RIGHT ANGLE PATTERN, SCREWED IN BONNET, OUT SIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS (BOLTED BONNET FOR SIZE 40mm & 50mm) END DETAILS FLANGED ENDS TO BS:10 TABLE ‘H’ TESTING 500 psig. (HYDRAULIC) WORKING PRESSURE SUITABLE FOR STEAM LINE UP TO 250psig.(17.58 kg/cm) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL … 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS … 8 BODY BRONZE BS:1400 LG2 9 DISC S.S. AISI-410 10 BODY SEAT RING S.S. AISI-410 11 STUDS & NUTS CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B ∅D T L H~ ∅W 15mm 12.7 114.3 10.0 73.0 105.0 90.0 20mm 19.0 114.3 10.0 76.0 105.0 95.0 25mm 25.0 120.6 12.0 83.0 120.0 102.0 32mm 32.0 133.3 12.0 89.0 138.0 127.0 40mm 38.0 139.7 12.0 95.0 153.0 127.0 50mm 50.0 165.1 13.0 108.0 175.0 150.0 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

Send Message
product image
Controlable/SDNR Valves

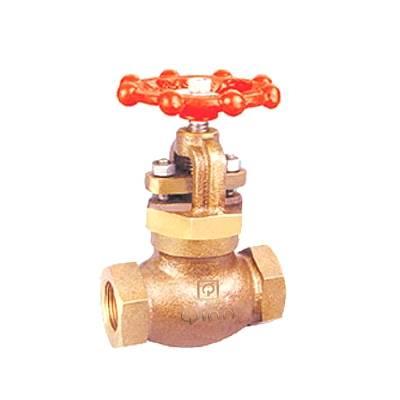

Q-117 S – Qinn BRONZE CONTROLLABLE FEED CHECK VALVE

PRODUCT DETAILS STRAIGHT PATTERN, SCREWED IN BONNET, OUT SIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS(BOLTED BONNET FOR 40mm & 50mm) END DETAILS SCREWED FEMALE BSP TAPER THREADS TO BS:21 WORKING PRESSURE SUITABLE FOR STEAM LINE UP TO 250 psig (17.58kg/cm² G) MAX WORKING TEMP. 437º F (225º c) TESTING HYDRAULIC BODY TEST PRESSURE :- 500 psig (35.15 kg?cm²) hyd MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT & STUD CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS —– 8 BODY BRONZE BS:1400 LG2 9 DISC S.S. AISI 410 10 BODY SEAT RING S.S. AISI 410 DIMENSIONS IN mm NOMINAL SIZE ∅B H~ L+1 ∅W 15mm 1/2″BSPT 115 83 78 20mm 3/4″BSPT 115 95 86 25mm 1″BSPT 138 111 86 32mm 1.1/4″BSPT 160 133 110 40mm 1.1/2″BSPT 170 152 125 50mm 2″BSPT 195 178 150 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

Send Message
product image
Controlable/SDNR Valves

Q-117 A – Qinn BRONZE CONTROLLABLE FEED CHECK VALVE

PRODUCT DETAILS RIGHT ANGLE PATTERN, SCREWED IN BONNET, OUTSIDE SCREW & YOKE TYPE WITH RENEWABLE STAINLESS STEEL WORKING PARTS (BOLTED BONNET FOR 40mm & 50mm) END DETAILS SCREWED FEMALE BSP TAPER THREADS TO BS:21 TESTING HYDRAULIC BODY TEST PRESSURE :- 500 psig.(35.1kg/cm²) SUITABLE FOR STEAM LINE UP TO 250 psig (17.58kg/cm²) MAX. WORKING TEMP. 437 (225ºC) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT & STUD CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL C.I. BS:1452, Gr.220 4 STEM S.S. AISI 410 5 BONNET BRONZE BS:1400 LG2 6 GLAND BRONZE BS:1400 LG2 7 PACKING GRAPHITED ASBESTOS —– 8 BODY BRONZE BS:1400 LG2 9 DISC S.S. AISI 410 10 BODY SEAT RING S.S. AISI 410 DIMENSIONS IN mm NOMINAL SIZE ∅B H~ L+1 ∅W 15mm 1/2″BSPT 105 41 70 20mm 3/4″BSPT 105 48 80 25mm 1″BSPT 120 57 95 32mm 1.1/4″BSPT 138 67 110 40mm 1.1/2″BSPT 153 76 127 50mm 2″BSPT 175 89 152 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

Send Message
