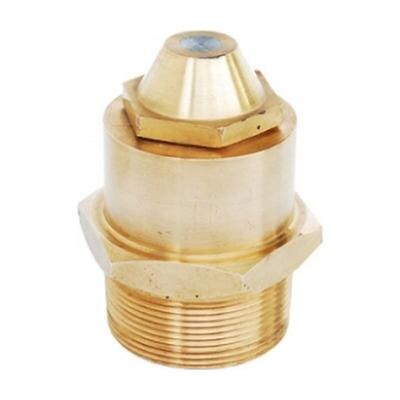

Fusible Plugs
END DETAILS SCREWED MALE END BSP TAPER TO BS:21 TESTING 500psig.(Hyd.) MELTING TEMP. MELTING TEMP. OF FUSSIBLE ALLOY: 270°C MATERIALS OF CONSTRUCTION S. NO. PART’S NAME MATERIALS SPECIFICATIONS 1 CONE BRONZE BS:1400 LG2 2 FUSIBLE ALLOY Pb Sn ALLOY … 3 CONE HOLDER BRONZE BS:1400 LG2 4 BODY BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE ∅A H 15mm 1/2″BSPT 53 20mm 3/4″BSPT 56 25mm 1″BSPT 70 32mm 1.1/4″BSPT 83 40mm 1.1/2″BSPT 89 50mm 2″BSPT 100 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
