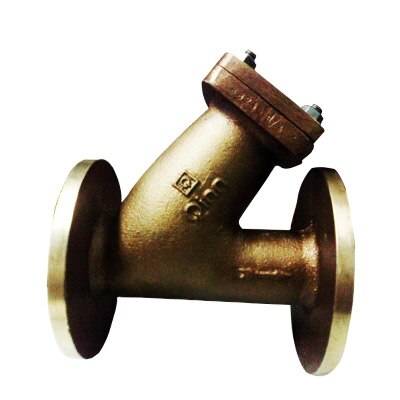

Q-108 – Qinn BRONZE ‘Y’ TYPE STRAINER

PRODUCT DETAILS

Y–TYPE BODY,BOLTED COVER WITH

PERFORATED NON MAGNETIC S.S. SCREEN

END DETAILS

FLANGED AS PER BS:10 TABLE ‘H’

TESTING

500 psig.(Hyd.)

WORKING PRESSURE

SUITABLE FOR STEAM UP TO 250 psig. MAX. WORKING TEMP 225° C.

MATERIALS OF CONSTRUCTION

S.NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY BRONZE BS:1400 LG2

2 SCREEN S.S. AISI-304

3 GASKET CAF STEAM JOINTING

4 COVER BRONZE BS:1400 LG2

5 STUD & NUT CARBON STEEL BS : 916

6 GASKET CAF STEAM JOINTING

7 PLUG BRONZE BS:1400 LG2

DIMENSIONS IN mm

NOMINAL SIZE ∅B ∅D L(+2.0) H~ T

25mm 23 121 162 115 12.7

32mm 30 133 185 122 15.8

40mm 36.5 140 206 145 15.8

50mm 48.5 165 210 160 19

65mm 62 184 248 185 19

80mm 78 203 270 258 19

100mm 98.5 229 381 306 22

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
