Steam Traps

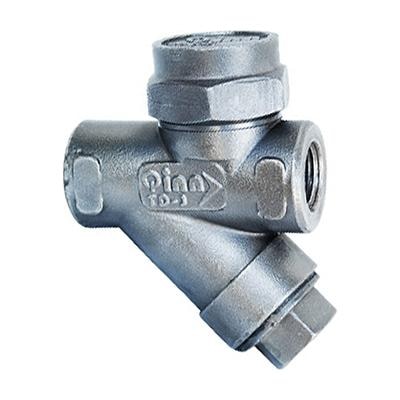

PRODUCT DETAILS THERMODYNAMIC TYPE WITH IN BUILT STRAINER & INTEGRAL SEATING END DETAILS SCREWED FEMALE BSP AS BS:21 TESTING B.T.P. :- AT 600 psig. HYDRAULIC WORKING SUITABLE FOR MAX. BOP 31bar AT 400 ° C MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 TOP NUT S.S. ASTM A743, CA-40 2 DISC S.S. ASTM A743, CA-40 3 BODY S.S. ASTM A743, CA-40 4 SCREEN S.S. ASTM A743, CA-40 5 BOTTOM PLUG S.S. ASTM A743, CA-40 DIMENSIONS IN mm NOMINAL SIZE B L H~ 15mm 1/2” BSP 80 45 20mm 3/4” BSP 80 45 25mm 1” BSP 87 50 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
