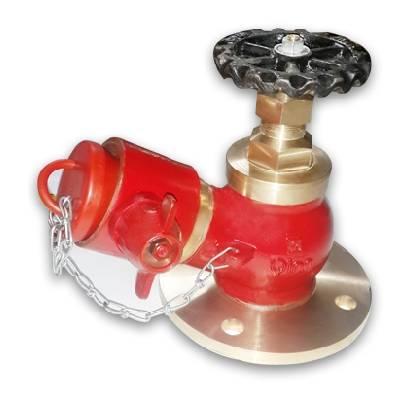

PRODUCT DETAILS SINGLE OUTLET OBLIQUE TYPE WITH STANDARD-INSTANTANEOUS FEMALE COUPLING AND BLANK CAP. END DETAILS FLANGED INLET TO BS:4504 PN10 TESTING HYDRAULIC BODY TEST PRESSURE :- 300 Psig TEST PRESSURE :- 200 Psig MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BOLT M.S. BS:916 2 SPRING WASHER SPRING STEEL —– 3 PLAIN WASHER M.S. —– 4 HAND WHEEL CAST IRON BS:1452 Gr220 5 SPINDLE BRASS BS:2874 CZ-114 6 GLAND BRONZE BS:1400 LG2 7 GLAND NUT BRONZE BS:1400 LG2 8 PACKING TEFLON PTFE 9 BONNET BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 11 DISC NUT BRONZE BS:1400 LG2 12 DISC BRONZE BS:1400 LG2 13 RESILIENT WASHER RUBBER NITRILE 14 PLAIN WASHER BRONZE BS:1400 LG2 15 NUT BRASS BS:2874 CZ-114 16 COVER BRONZE BS:1400 LG2 17 NUT BRASS BS:2874 CZ-114 18 CAM TOOTH BRASS BS:2874 CZ-122 19 PULL-OUT TYPE LUG BRONZE BS:1400 LG2 20 SPRING STAINLESS STEEL AISI-304 21 CAM TOOTH HOUSING BRONZE BS:1400 LG2 22 INSTANTANEOUS OUT LET BRONZE BS:1400 LG2 23 BLANK CAP PLASTIC —– 24 CONICAL WASHER RUBBER HIGH NITRILE 25 CHAIN M.S. —– DIMENSIONS IN mm NOMINAL SIZE ∅B ∅D T L~ ∅W 40mm 38 150 10.00 200 100 50mm 47 165 11.50 210 100 65mm 63.50 185 12.5 230 125 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
