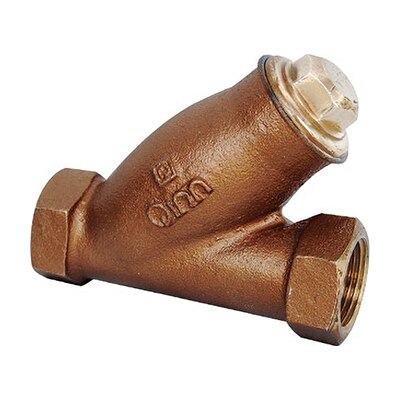

Q-11 – Qinn BRONZE Y-TYPE STRAINER
In stock
Description
PRODUCT DETAILS
Y-TYPE BODY,SCREWED IN COVER WITH PERFORATED NON MAGNETIC S.S. SCREEN
END DETAILS
SCREWED FEMALE ENDS BSP THREADS TO BS:21
TESTING
TEST PRESSURE :300psig.(Hyd.)
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BODY BRONZE BS:1400 LG2
2 SCREEN S.S AISI-304
3 GASKET C.A.F —–
4 BONNET BRONZE BS:1400 LG2
DIMENSIONS IN mm
NOMINAL SIZE A L+1.5 H~
15mm 1/2” BSP 72 50
20mm 3/4” BSP 97 68
25mm 1” BSP 119 83
32mm 1.1/4” BSP 147 90
40mm 1.1/2” BSP 168 104
50mm 2” BSP 207 129
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
