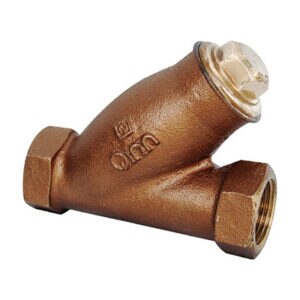

Q-107- Qinn BRONZE ‘Y’ TYPE STRAINER
In stock
Description
PRODUCT DETAILS
Y-TYPE BODY,SCREWED IN COVER WITH PERFORATED NON MAGNETIC S.S. SCREEN
END DETAILS
SCREWED FEMALE ENDS BSPT TO BS:21
TESTING
500 psig.(Hyd.)
WORKING PRESSURE
SUITABLE FOR STEAM UP TO 250 psig. MAX. WORKING TEMP 225° C.
MATERIALS OF CONSTRUCTION
S.NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BODY BRONZE BS:1400 LG2
2 SCREEN S.S AISI-304
3 GASKET C.A.F STEAM JOINTING
4 BONNET BRONZE BS:1400 LG2
DIMENSIONS IN mm
NOMINAL SIZE ∅A L(+1.5) H~
15mm 1/2” BSP 76 54
20mm 3/4” BSP 98 67
25mm 1” BSP 133 85
32mm 1.1/4″BSPT 152 85
40mm 1.1/2″BSPT 178 115
50mm 2″BSPT 222 138
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE
