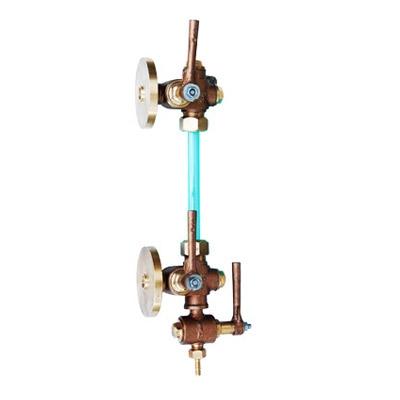

PRODUCT DETAILS SQUARE SECTION PATTERN, RENEWABLE GRAPHITED ASBESTOS SEATING WITH BRONZE PLUG & LEVER OPERATED COMPLETE SET. END DETAILS FLANGE ENDS TO BS:10 TABLE-F TESTING 300 psig. (Hyd.) WORKING PRESSURE SUITABLE FOR STEAM LINE UPTO 150 psig. MAX. WORKING TEMP. 437º F (225º c) MATERIALS OF CONSTRUCTION S. NO. PART’S NAME MATERIALS SPECIFICATIONS 1 PLUG BRONZE BS:1400 LG2 2 GASKET STEAM JOINTING —– 3 SIDE NUT BRONZE BS:1400 LG2 4 GASKET STEAM JOINTING —– 5 UPPER ARM BRONZE BS:1400 LG2 6 PACKING GRAPHITED ASBESTOS —– 7 GLAND BRONZE BS:1400 LG2 8 GLAND NUT BRONZE BS:1400 LG2 9 GLASS TUBE GLASS —– 10 LOWER ARM BRONZE BS:1400 LG2 11 GASKET STEAM JOINTING —– 12 DRAIN COCK BRONZE BS:1400 LG2 13 NUT BRONZE BS:1400 LG2 14 PLUG BRONZE BS:1400 LG2 15 UNION NUT BRONZE BS:1400 LG2 16 TAIL PIPE BRASS BS:2872 CZ114 17 BOTTOM NUT BRONZE BS:1400 LG2 18 BODY SEAT ASBESTOS —–
