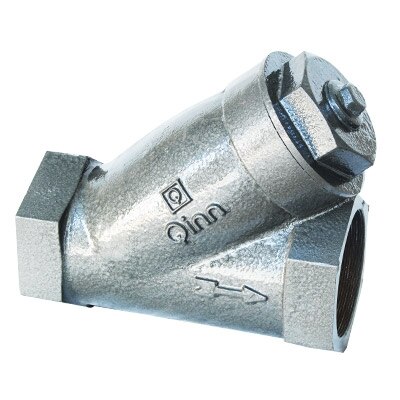

Q-81 – Qinn CAST IRON Y- TYPE STRAINER

PRODUCT DETAILS

Y-TYPE STRAINER WITH PERFORATED STAINLESS STEEL ( AISI 304 ) SCREEN AND DRAIN OUT PLUG TYPE.

END DETAILS

SCREWED FEMALE BSP ENDS TO BS:21

TESTING

SUITABLE FOR STEAM UP TO 150 psig.

TESTING

BODY TEST PRESSURE :300 psig.(HYD.)

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS: 1452 Gr.220

2 SCREEN S.S AISI-304

3 GASKET C.A.F —–

4 BONNET CAST IRON BS: 1452 Gr.220

5 PLUG CAST IRON BS: 1452 Gr.220

DIMENSIONS IN mm

NOMINAL SIZE A L+1.5 H~

15mm 1/2” BSP 98 54

20mm 3/4” BSP 115 63

25mm 1” BSP 133 76

32mm 1.1/4” BSP 156 85

40mm 1.1/2” BSP 174 113

50mm 2” BSP 215 120

65mm 2.1/2” BSP 222 135

80mm 3” BSP. 255 165

100mm 4” BSP 282 195

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
