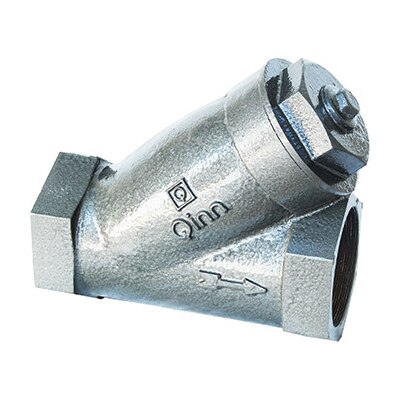

Q-208 – Qinn CAST IRON ‘Y’ TYPE STRAINER

PRODUCT DETAILS

BOLTED COVER WITH NON MAGENTIC STAINLESS STEEL PERFORATED SHEET SCREEN.

END DETAILS

FLANGED ENDS AS PER BS:10 TABLE ‘F’

TESTING

370 psig (hyd.)

WORKING PRESSURE

SUITABLE FOR STEAM UP TO 185 psig

MAX. WORKING TEMP 220 C

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS:1452 Gr220

2 SCREEN SS AISI-304

3 GASKET CAF STEAM JOINTING

4 COVER CAST IRON BS:1452 Gr220

5 STUD & NUT CARBON STEEL BS:916

6 GASKET CAF STEAM JOINTING

7 DRAIN PLUG CAST IRON BS:1452 Gr220

DIMENSIONS IN mm

NOMINAL SIZE ∅A ∅D T L(±1.5) H~

25MM 25 121 12.7 162 115

32MM 32 133 15.8 185 122

40MM 40 140 15.8 206 145

50MM 50 165 19 210 160

65MM 65 185 19 248 185

80MM 80 203 19 270 258

100MM 100 229 22 381 306

125MM 125 280 25 416 390

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
