Petroleum Products

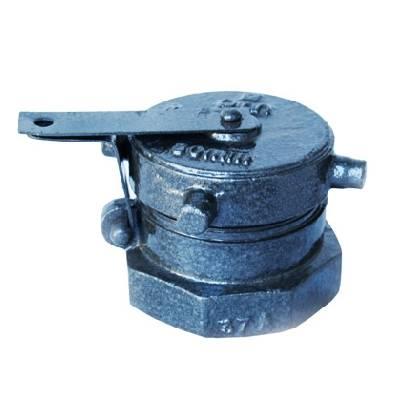

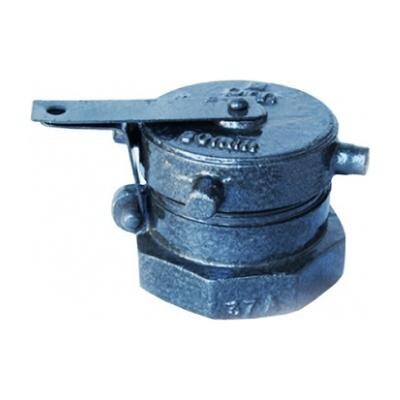

PRODUCT DETAILS TANK MOUNTING WITH CAP & LOCKING ARRANGEMENT END DETAILS OUTLET :- FEMALE BSP AS TO BS:21 INLET :- MALE BSP AS TO BS:21 WORKING SUITABLE TO FILL THE OIL TANK THROUGH HOLE UNDER LOCKABLE CAP MATERIALS OF CONSTRUCTION S. NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY CAST IRON BS:1452 Gr.220 2 LOCKING STRIPS CARBON STEEL —– 3 CAP CAST IRON BS:1452 Gr.220 4 SEAL RUBBER NITRILE 5 RIVET CARBON STEEL —– DIMENSIONS IN mm NOMINAL SIZE ∅A ∅B H~ 65mm 2.1/2″BSP 2.1/2″BSP 90 80mm 3″BSP 3″BSP 90 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
