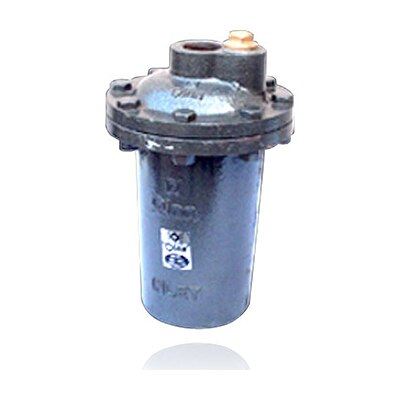

Q-209 – Qinn CAST IRON VERTICAL INVERTED BUCKET TYPE STEAM TRAP

PRODUCT DETAILS

INVERTED BUCKET TYPE, VERTICAL INSTALLABLE, WITH SS-304 WORKING PARTS.

END DETAILS

SCREWED FEMALE ENDS BSP PARALLEL TO BS:21

TESTING

300 psig. (SHELL TEST) HYDRAULIC.

WORKING PRESSURE

MAXIMUM B.O.P. 10 Bar

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 PLUG BRONZE BS:1400 LG2

2 COVER CAST IRON BS:1452 Gr220

3 NUT & BOLT CARBON STEEL BS:916

4 VALVE SEAT S.S. AISI-304

5 BALL SEAT S.S. AISI-202

6 E-CLAMP S.S. AISI-304

7 BUCKET S.S. AISI-304

8 BODY CAST IRON BS:1452 Gr220

9 BUCKET RING CAST IRON BS:1452 Gr220

10 HOOK S.S. AISI-304

11 VALVE LEVER S.S. AISI-304

12 GASKET C.A.F. —–

13 BUCKET HOOK S.S. AISI-304

14 SYPHON PIPE MCI BS:10242

DIMENSIONS IN mm

NOMINAL SIZE ∅B ∅A L+1.5

15mm 1/2” BSP 1/2” BSP 210

20mm 3/4” BSP 3/4” BSP 210

25mm 1” BSP 1” BSP 275

32mm 1.1/4” BSP 1.1/4” BSP 312

40mm 1.1/2” BSP 1.1/2” BSP 388

50mm 2” BSP 2” BSP 440

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
