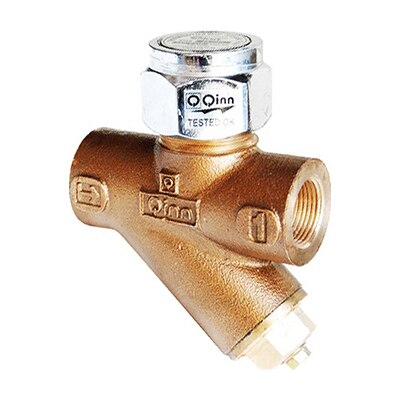

Q-113 – Qinn BRONZE THERMODYNAMIC STEAM TRAP

PRODUCT DETAILS

RENEWABLE SS-410(HARDENED) SEATS WITH NON MAGNETIC PERFORATED SCREEN.

END DETAILS

SCREWED FEMALE END BSP TAPER THREADS TO BS:21

TESTING

SHELL TEST PRESSURE 34.5 BAR HYDRAULIC.

WORKING PRESSURE

SUITABLE FOR STEAM UP TO 250 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 SEAT COVER S.S. AISI-410

2 DISC S.S. AISI-410

3 SEAT S.S. AISI-410

4 BODY BRONZE BS:1400 LG2

5 SCREEN S.S. AISI-304

6 GASKET C.A.F. —–

7 SCREEN PLUG BRONZE BS:1400 LG2

8 RELEASE PLUG CARBON STEEL BS:916 GALVANIZED

DIMENSIONS IN mm

NOMINAL SIZE ∅B L+1.5 H~

15mm 1/2” BSPT 83 63.0

20mm 3/4” BSPT 96 73.0

25mm 1” BSPT 120 85.0

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
