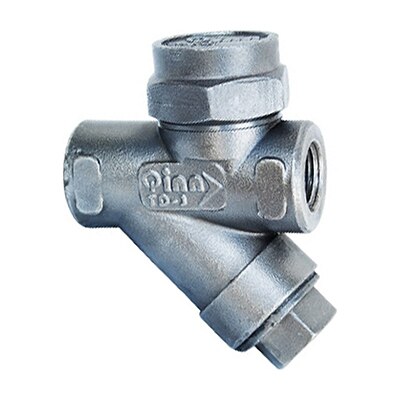

Q-211 – Qinn STAINLESS STEEL THERMODYNAMIC STEAM TRAP
In stock
Description
PRODUCT DETAILS
THERMODYNAMIC TYPE WITH IN BUILT STRAINER & INTEGRAL SEATING
END DETAILS
SCREWED FEMALE BSP AS BS:21
TESTING
B.T.P. :- AT 600 psig. HYDRAULIC
WORKING
SUITABLE FOR MAX. BOP 31bar AT 400 ° C
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 TOP NUT S.S. ASTM A743, CA-40
2 DISC S.S. ASTM A743, CA-40
3 BODY S.S. ASTM A743, CA-40
4 SCREEN S.S. ASTM A743, CA-40
5 BOTTOM PLUG S.S. ASTM A743, CA-40
DIMENSIONS IN mm
NOMINAL SIZE B L H~
15mm 1/2” BSP 80 45
20mm 3/4” BSP 80 45
25mm 1” BSP 87 50
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
