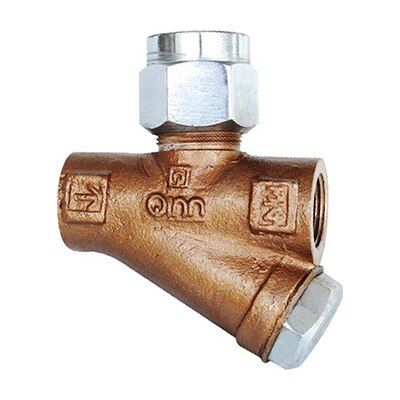

Q-10 – Qinn BRONZE THERMODYNAMIC STEAM TRAP

PRODUCT DETAILS

WITH S.S.(AISI 410) WORKING PARTS AND (AISI 304) NON MAGNETIC PERFORATED SCREEN.

END DETAILS

FEMALE ENDS BSP TO BS:21

TESTING

SHELL TEST PRESSURE:300 psig.

WORKING PRESSURE

SUITABLE FOR STEAM PRESSURE

MIN. 76 psig., MAX. 200 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 SEAT COVER CARBON STEEL CHROME PLATED

2 DISC S.S. AISI-410

3 SEAT S.S. AISI-410

4 BODY BRONZE BS:1400 LG2

5 SCREEN S.S. AISI-304

6 SCREEN PLUG CARBON STEEL CHROME PLATED

7 GASKET C.A.F —–

8 NAME PLATE ALUMINIUM —–

DIMENSIONS IN mm

NOMINAL SIZE ∅B L H~

15mm 1/2” BSP 82 60

20mm 3/4” BSP 88 60

25mm 1” BSP 110 70

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
