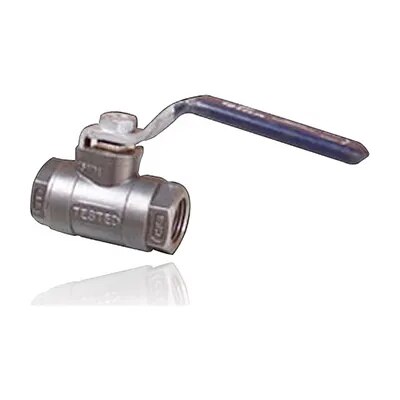

Q-74 (CF8M) – Qinn STAINLESS STEEL BALL VALVE

PRODUCT DETAILS

FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED.

END DETAILS

SCREWED FEMALE ENDS BSP TO BS:21 OR NPT TO ANSI B1.20.1

TESTING(HYD.)

HYDRAULIC.

BODY TEST PRESSURE :-710 psig

SEAT TEST PRESSURE:-300psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 LEVER SS AISI 316

2 NUT SS AISI 316

3 GLAND NUT SS AISI 316

4 BODY SS ASTM 351, CF8M

5 BALL SS AISI 316

6 SEAT TEFLON PTFE

7 SLEEVE PVC ———–

8 GLAND PACKING TEFLON PTFE

9 STEM SEAL TEFLON PTFE

10 STEM SS AISI 316

11 CONNECTOR SS ASTM 351, CF8M

12 CONNECTOR SEAL TEFLON PTFE

DIMENSIONS IN mm

NOMINAL SIZE ∅B L H D

15MM 1/2″BSP 60 54 100

20MM 3/4″ BSP 64 58 125

25MM 1″ BSP 80 60 125

32MM 1-1/4″BSP — — —

40MM 1-1/2″BBSP 95 90 165

50MM 2″BSP 112 96 190

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
