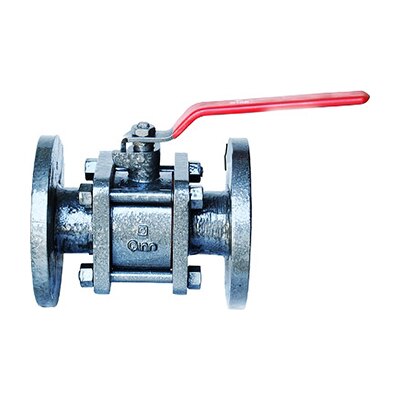

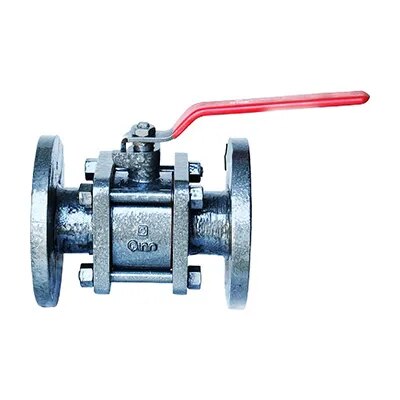

Q-68 – Qinn CAST IRON BALL VALVE FLANGED ENDS

PRODUCT DETAILS

FULL BORE THREE PIECE DESIGN WITH S.S BALL & STEM, TEFLON SEAT , BLOW OFF PROOF STEM,LEVER OPERATED

END DETAILS

FLANGED TO BS-10 TABLE ‘F’/E/D

OR ANSI CLASS-150

OR BS:4504 PN10/16

TESTING(HYD.)

BODY TEST PRESSURE : 300 psig.

SEAT TEST PRESSURE : 300 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 HANDLE CARBON STEEL …

2 TOP NUT CARBON STEEL BS:916

3 GLAND NUT CARBON STEEL BS:916

4 GLAND PACKING TEFLON PTFE

5 STEM S.S AISI-410

6 STEM SEAL TEFLON PTFE

7 SEATS TEFLON PTFE

8 BALL S.S. ——

9 CONNECTOR C.I. BS:1452 GR220

10 SEALINGS RUBBER NITRILE

11 BODY C.I.. BS:1452 GR220

12 NUT/ STUD CARBON STEEL BS:916

DIMENSIONS IN mm

NOMINAL SIZE ∅B L H~ ∅F ∅G T D~

15mm 14 128 80 89 35 11.2 110

20mm 17 130 80 98.5 43 11.2 110

25mm 23.5 140 85 108 51 11.2 132

32mm 30 165 110 117.5 62.5 12.7 152

40mm 37 165 115 127 73 14.2 170

50mm 49 203 125 152.5 92.5 15.8 210

65mm 63 223 145 178 105 17.5 250

80mm 78 241 180 190.5 127 19.0 327

100mm 98 310 225 229 157 24.0 396

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
