Q-67 – Qinn CAST IRON BALL VALVE

PRODUCT DETAILS

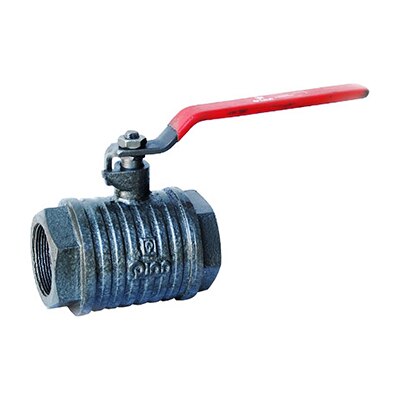

FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED.

END DETAILS

SCREWED FEMALE ENDS BSP TO BS:21

TESTING

HYDRAULIC.

BODY TEST PRESSURE :- 500 psig

SEAT TEST PRESSURE :- 500 psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 LEVER CARBON STEEL —–

2 NUT CARBON STEEL BS:916

3 GLAND NUT CARBON STEEL BS:916

4 GLAND PACKING TEFLON PTFE

5 STEM SEAL TEFLON PTFE

6 SEAT TEFLON PTFE

7 BALL S.S. —–

8 BODY CAST IRON BS:1452 Gr.220

9 STEM S.S. AISI-410

10 CONNECTOR CAST IRON BS:1452 Gr.220

DIMENSIONS IN mm

NOMINAL SIZE ∅A L+1.5 H1~ D~

15mm 1/2” BSP 84 62 110

20mm 3/4” BSP 90 68 110

25mm 1”BSP 95 68 132

32mm 1.1/4”BSP 107 100 150

40mm 1.1/2” BSP 120 110 170

50mm 2” BSP 143 115 200

65mm 2.1/2”BSP 160 145 250

80mm 3”BSP 180 150 320

100mm 4”BSP 228 220 400

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
