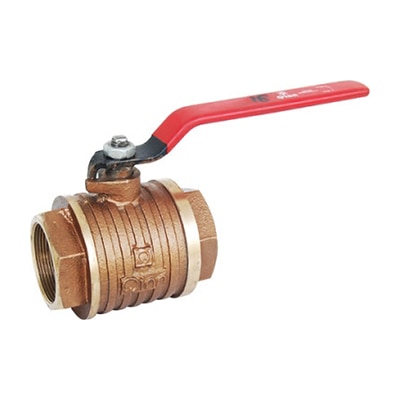

Q-1 – Qinn BRONZE BALL VALVE

PRODUCT DETAILS

WO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED.

END DETAILS:-

SCREWED FEMALE ENDS BSP TO BS:21

TESTING (HYD.)

BODY TEST PRESSURE : 300 psig

SEAT TEST PRESSURE : 300 psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 Lever Carbon Steel —–

2 Nut Carbon Steel BS-916

3 Gland Nut Carbon Steel BS-916

4 Gland Packing Teflon PTFE

5 Stem Seal Teflon PTFE

6 Seat Teflon PTFE

7 Ball S.S. —–

8 Body BRONZE BS: 1400 LG2

9 Stem S.S. AISI-410

10 Connector BRONZE BS: 1400 LG2

11 Sleeve PVC ——

DIMENSIONS IN mm

NOMINAL SIZE ∅A B L H~ D~

15mm 14 1/2” BSP 68 65 100

20mm 19 3/4” BSP 75 65 115

25mm 25 1” BSP 83 75 132

32mm 32 1-1/4” BSP 97 100 150

40mm 38 1-1/2” BSP 107 100 170

50mm 48 2” BSP 122 110 215

65mm 63 2-1/2” BSP 148 165 250

80mm 77 3” BSP 164 175 327

100mm 97 4” BSP 214 230 405

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
