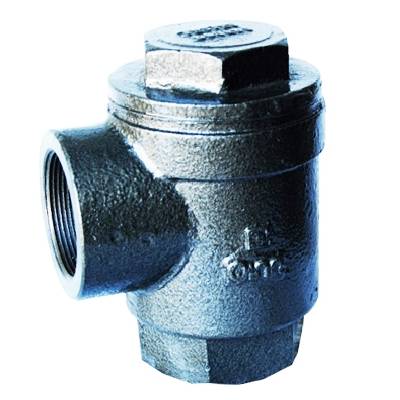

Q-76 – Qinn CAST IRON ANGLE CHECK VALVE
In stock
Description
PRODUCT DETAILS
SCREWED IN BONNET, RENEWABLE- BRONZE SEAT & RING, SOFT SEATING AND SUITABLE FOR HIGH PRESSURE IN PETROL INDUSTRY.
END DETAILS
SCREWED BSP FEMALE AS BS:21
TESTING
HYDRAULIC
BODY TESTED:- 500 psig.
SEAT TESTED:- 300 psig.
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BONNET CAST IRON BS:1452 Gr.220
2 GASKET C.A.F. …
3 BODY CAST IRON BS:1452 Gr.220
4 SEAT BRONZE BS:1400 LG2
5 SEAT FACING RUBBER NITRILE
6 BODY RING BRONZE BS:1400 LG2
7 SPLIT PIN BRASS BS:2872 CZ114
8 WASHER ALLUMINIUM …
9 NUT BRASS BS:2872 CZ114
DIMENSIONS IN mm
NOMINAL SIZE ∅ A B~ C~
40mm 1/2”BSP 78 76 70
50mm 2”BSP 80 88 76
