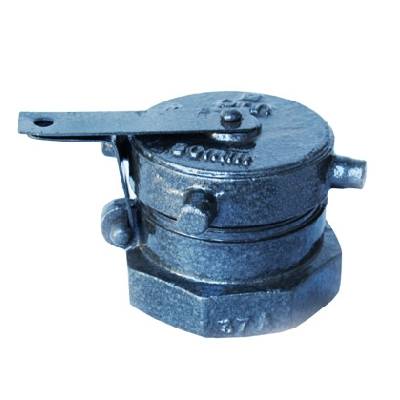

Q-77 – Qinn CAST IRON dip CAP

PRODUCT DETAILS

TANK MOUNsTING WITH CAP & LOCKING

ARRANGEMENT

END DETAILS

MOUNTING THREADS BSP TO BS:21

WORKING

SUITABLE FOR FLUID TANKS TO CHECK THE LEVEL OF TANK BY INSERTING DIP SCALE/GAUGE THROUGH GAUGE HOLE UNDER THE LOCKABLE CAP

MATERIALS OF CONSTRUCTION

S. NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS:1452 Gr.220

2 LOCKING STRIPS CARBON STEEL —–

3 CAP CAST IRON BS:1452 Gr.220

4 SEAL RUBBER NITRILE

5 RIVET CARBON STEEL —–

DIMENSIONS IN mm

NOMINAL SIZE ∅A H~

40mm 1.1/2″BSP 63

50mm 2″BSP 63
