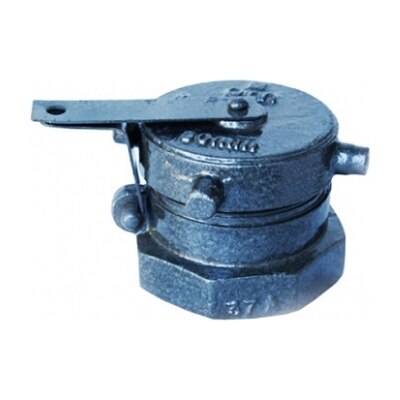

Q-78 – Qinn CAST IRON FILL CAP

PRODUCT DETAILS

TANK MOUNTING WITH CAP & LOCKING ARRANGEMENT

END DETAILS

OUTLET :- FEMALE BSP AS TO BS:21

INLET :- MALE BSP AS TO BS:21

WORKING

SUITABLE TO FILL THE OIL TANK THROUGH HOLE UNDER LOCKABLE CAP

MATERIALS OF CONSTRUCTION

S. NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY CAST IRON BS:1452 Gr.220

2 LOCKING STRIPS CARBON STEEL —–

3 CAP CAST IRON BS:1452 Gr.220

4 SEAL RUBBER NITRILE

5 RIVET CARBON STEEL —–

DIMENSIONS IN mm

NOMINAL SIZE ∅A ∅B H~

65mm 2.1/2″BSP 2.1/2″BSP 90

80mm 3″BSP 3″BSP 90

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
