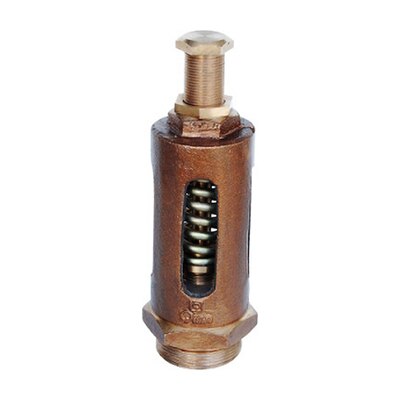

Q-12 – Qinn BRONZE SPRING RELIEF VALVE (STRAIGHT TYPE)
In stock
Description
PRODUCT DETAILS
SPRING LOADED,INTEGRAL SEATING & OPEN DISCHARGE TYPE.
END DETAILS
MALE INLET BSP THREADS TO BS:21
TESTING
20 TO 150 Psig. HYDRAULIC.
SET PRESSURE
50psig.
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 ADJUSTING SCREW BRONZE BS:1400 LG2
2 CHECK NUT BRONZE BS:1400 LG2
3 CHAMBER BRONZE BS:1400 LG2
4 UPPER SPRING DISC BRONZE BS:1400 LG2
5 SPRING SPRING STEEL EN:47
6 STEM BRONZE BS:1400 LG2
7 SEAT BRONZE BS:1400 LG2
8 BODY BRONZE BS:1400 LG2
DIMENSIONS IN mm
NOMINAL SIZE A H~
15mm 1/2” BSP 126
20mm 3/4” BSP 133
25mm 1” BSP 170
32mm 1.1/4” BSP 170
40mm 1.1/2” BSP 208
50mm 2” BSP 225
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
