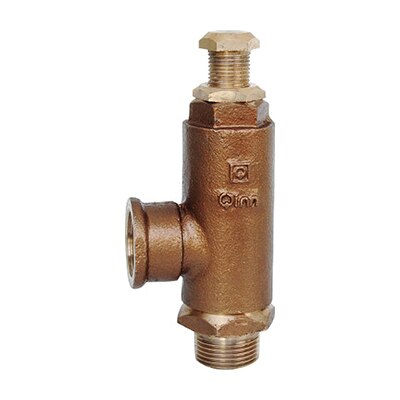

Q-13 – Qinn BRONZE SPRING RELIEF VALVE ( ANGEL TYPE )

PRODUCT DETAILS

SPRING LOADED,INTEGRAL SEATING & ENCLOSED DISCHARGE TYPE

END DETAILS

SCREWED MALE INLET BSP TO BS:21,

SCREWED FEMALE OUTLET BSP TO BS:21

TESTING

20 psig TO 150 psig HYDRAULIC

SET PRESSURE

50 psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 ADJUSTING SCREW BRONZE BS:1400 LG2

2 CHECK NUT BRONZE BS:1400 LG2

3 CHAMBER BRONZE BS:1400 LG2

4 UPPER SPRING DISC BRONZE BS:1400 LG2

5 SPRING SPRING STEEL EN:47

6 STEM BRONZE BS:1400 LG2

7 SEAT BRONZE BS:1400 LG2

8 BODY BRONZE BS:1400 LG2

DIMENSIONS IN mm

NOMINAL SIZE A & B C ~ D~ H~

15mm 1/2” BSP 43 60 132

20mm 3/4” BSP 45 60 136

25mm 1” BSP 52 63 165

32mm 1.1/4” BSP … … 170

40mm 1.1/2” BSP 63 80 215

50mm 2” BSP 63 82 225

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
