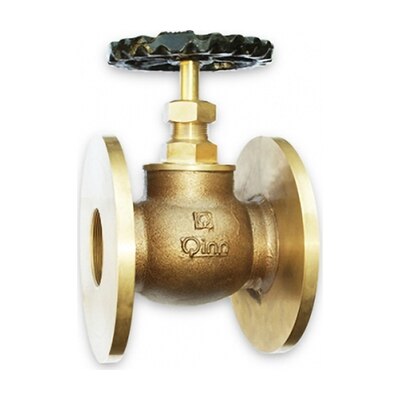

Q-28 A – Qinn BRONZE GLOBE STOP CUM NON RETURN (SDNR) VALVE – NO. 8

PRODUCT DETAILS

SCREWED IN BONNET, INSIDE SCREW, RISING STEM HAVING INTEGRAL SEAT & BRASS STEM.

END DETAILS

FLANGED END TO BS:10 TABLE D/E; AND ALSO AVAILABLE IN PN-10/16, JIS 5K, 10K, ON DEMAND.

WORKING PRESSURE

SUITABLE FOR HYDRAULIC LINE BS:4504, PN-10.

TESTING HYDRAULIC

BODY TEST PRESSURE :- 300 psig.

SEAT TEST PRESSURE :- 200 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HAND WHEEL C.I. BS:1452 Gr.220

4 STEM BRASS BS:2872 CZ114

5 GLAND BRONZE BS:1400 LG2

6 GLAND NUT BRONZE BS:1400 LG2

7 PACKING ASBESTOS …

8 BONNET BRONZE BS:1400 LG2

9 DISC BRONZE BS:1400 LG2

10 BODY BRONZE BS:1400 LG2

DIMENSIONS IN mm

NOMINAL SIZE ∅D ∅B L(+1.5) T H (APX) W~

15mm 95.3 14 56 6.30 76 64

20mm 101.6 18 69 6.30 83 64

25mm 114.3 23 85 8.00 96 76

32mm 120.7 30 90 8.00 112 85

40mm 133.4 38 100 9.50 125 100

50mm 152.4 47 109 9.50 134 100

65mm 165.1 63 140 11.20 164 125

80mm 184 76 170 12.70 190 125

100mm 216 97 200 15.80 215 150

125mm 254 121 … 17.5 … 250

150mm 280 145 260 17.5 320 260

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
