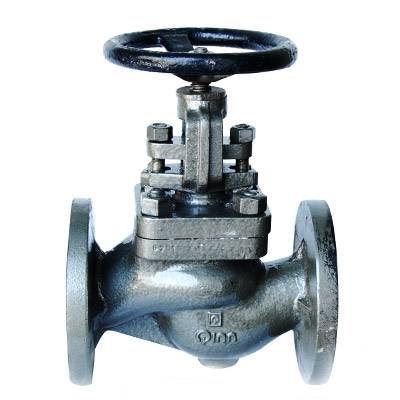

Q-205 S – Qinn CAST IRON GLOBE STEAM STOP CUM NRV

PRODUCT DETAILS

BOLTED BONNET, OUTSIDE SCREW & YOKE TYPE, RISING STEM WITH BACKSEAT ARRANGEMENT, RENEWABLE STAINLESS STEEL (AISI 410) TRIM, HAND WHEEL OPERATED.

END DETAILS

FLANGED TO DIN 2533 RF, PN16 FOR SIZE UPTO 150mm.

FLANGED TO DIN 2532 RF, PN10 FOR SIZE 200mm.

WORKING PRESSURE

SUITABLE FOR STEAM LINE NOMINAL

PRESSURE RATING PN-16/10, CONFORMING TO BS-5152, MAX. WORKING TEMP.220ºC(428ºF)

TESTING

HYDRAULIC.

TEST PRESSURE :- 26bar (377psig. hyd.) for size up to 150mm

TEST PRESSURE :- 16bar (232 psig. hyd.) for size 200mm

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HANDWHEEL CAST IRON BS:1452 Gr.220

4 YOKE BUSH ALUMINIUM BRONZE BS:1400 AB1C

5 LOCKING SCREW CARBON STEEL BS: 916

6 GLAND CAST IRON BS:1452 Gr.220

7 PACKING ASBESTOS GRAPHITED —–

8 BONNET CAST IRON BS:1452 Gr.220

9 DISC NUT BRONZE BS:1400 LG2

10 DISC STAINLESS STEEL AISI-410

11 BODY CAST IRON BS:1452 Gr.220

12 STEM STAINLESS STEEL AISI-410

13 STUD & NUTS CARBON STEEL BS:916

14 GASKET C.A.F —–

15 BODY SEAT RING STAINLESS STEEL AISI-410

DIMENSIONS IN mm

NOMINAL SIZE ∅D ∅E ∅F T B L* H ∅W~

15mm 15 45 95 14 2 130 162 100

20mm 20 58 105 16 2 150 165 100

25mm 25 68 115 16 2 160 175 100

32mm 32 78 140 18 2 180 190 125

40mm 40 88 150 18 3 200 240 160

50mm 50 102 165 20 3 230 255 160

65mm 65 122 185 20 3 290 285 200

80mm 80 138 200 22 3 310 310 200

100mm 100 158 220 24 3 350 350 250

125mm 125 188 250 26 3 400 425 250

150mm 150 212 285 26 3 480 485 310

200mm 200 268 340 26 3 600 590 400

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
