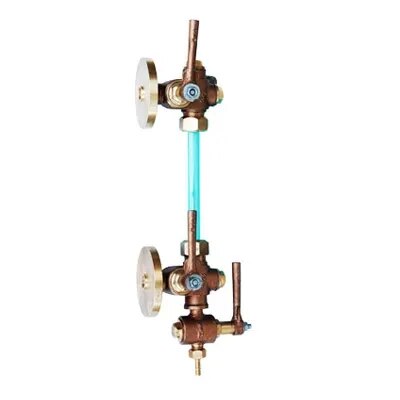

Q-110 – Qinn BRONZE WATER LEVEL GAUGE (SLEEVE PACKED )

PRODUCT DETAILS

SQUARE SECTION PATTERN, RENEWABLE GRAPHITED ASBESTOS SEATING WITH BRONZE PLUG & LEVER OPERATED COMPLETE SET.

END DETAILS

FLANGE ENDS TO BS:10 TABLE-F

TESTING

300 psig. (Hyd.)

WORKING PRESSURE

SUITABLE FOR STEAM LINE UPTO 150 psig. MAX. WORKING TEMP. 437º F (225º c)

MATERIALS OF CONSTRUCTION

S. NO. PART’S NAME MATERIALS SPECIFICATIONS

1 PLUG BRONZE BS:1400 LG2

2 GASKET STEAM JOINTING —–

3 SIDE NUT BRONZE BS:1400 LG2

4 GASKET STEAM JOINTING —–

5 UPPER ARM BRONZE BS:1400 LG2

6 PACKING GRAPHITED ASBESTOS —–

7 GLAND BRONZE BS:1400 LG2

8 GLAND NUT BRONZE BS:1400 LG2

9 GLASS TUBE GLASS —–

10 LOWER ARM BRONZE BS:1400 LG2

11 GASKET STEAM JOINTING —–

12 DRAIN COCK BRONZE BS:1400 LG2

13 NUT BRONZE BS:1400 LG2

14 PLUG BRONZE BS:1400 LG2

15 UNION NUT BRONZE BS:1400 LG2

16 TAIL PIPE BRASS BS:2872 CZ114

17 BOTTOM NUT BRONZE BS:1400 LG2

18 BODY SEAT ASBESTOS —–
