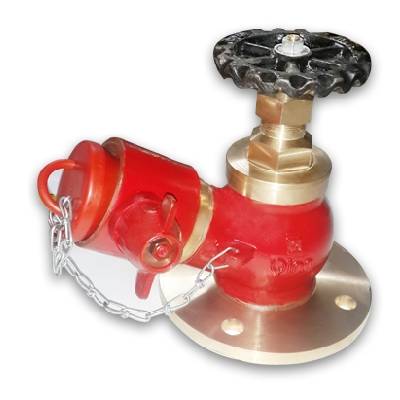

Q-65 – Qinn BRONZE FIRE HYDRANT VALVE

PRODUCT DETAILS

SINGLE OUTLET OBLIQUE TYPE WITH STANDARD-INSTANTANEOUS FEMALE COUPLING AND BLANK CAP.

END DETAILS

FLANGED INLET TO BS:4504 PN10

TESTING

HYDRAULIC

BODY TEST PRESSURE :- 300 Psig

TEST PRESSURE :- 200 Psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BOLT M.S. BS:916

2 SPRING WASHER SPRING STEEL —–

3 PLAIN WASHER M.S. —–

4 HAND WHEEL CAST IRON BS:1452 Gr220

5 SPINDLE BRASS BS:2874 CZ-114

6 GLAND BRONZE BS:1400 LG2

7 GLAND NUT BRONZE BS:1400 LG2

8 PACKING TEFLON PTFE

9 BONNET BRONZE BS:1400 LG2

10 BODY BRONZE BS:1400 LG2

11 DISC NUT BRONZE BS:1400 LG2

12 DISC BRONZE BS:1400 LG2

13 RESILIENT WASHER RUBBER NITRILE

14 PLAIN WASHER BRONZE BS:1400 LG2

15 NUT BRASS BS:2874 CZ-114

16 COVER BRONZE BS:1400 LG2

17 NUT BRASS BS:2874 CZ-114

18 CAM TOOTH BRASS BS:2874 CZ-122

19 PULL-OUT TYPE LUG BRONZE BS:1400 LG2

20 SPRING STAINLESS STEEL AISI-304

21 CAM TOOTH HOUSING BRONZE BS:1400 LG2

22 INSTANTANEOUS OUT LET BRONZE BS:1400 LG2

23 BLANK CAP PLASTIC —–

24 CONICAL WASHER RUBBER HIGH NITRILE

25 CHAIN M.S. —–

DIMENSIONS IN mm

NOMINAL SIZE ∅B ∅D T L~ ∅W

40mm 38 150 10.00 200 100

50mm 47 165 11.50 210 100

65mm 63.50 185 12.5 230 125

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
