Q-8 – Qinn BRONZE FERRULE COCK

PRODUCT DETAILS

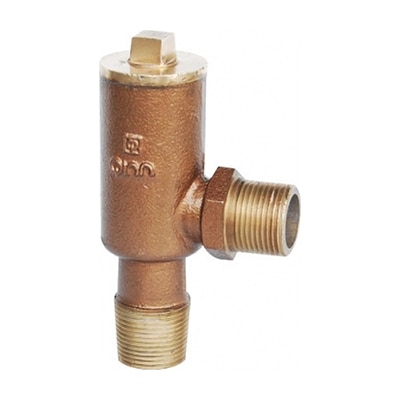

BRONZE FERRULE COCK ‘JCSWR’ PATTERN

END DETAILS

MALE INLET BSP TAPER

MALE OUTLET BSP PARALLEL

TESTING (HYD.)

BODY TEST PRESSURE:-300psig.

SEAT TEST PRESSURE:-300psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BONNET BRONZE BS:1400 LG2

2 GASKET CAF —–

3 SEAT BRONZE BS:1400 LG2

4 BODY BRONZE BS:1400 LG2

DIMENSIONS IN mm

S.NO. NOMINAL SIZE ∅A ∅B H~ L

1 15mm 1/2″BSP 1/2″BSP T 45 120

2 20mm 3/4″BSP 3/4″BSP T 65 139

3 25mm 1″BSP 1″BSP T 77 154

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
