PRODUCT DETAILS FULL BORE THREE PIECE DESIGN WITH S.S BALL & STEM, TEFLON SEAT , BLOW OFF PROOF STEM,LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘F’/E/D OR ANSI CLASS-150 OR BS:4504 PN10/16 TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE CARBON STEEL … 2 TOP NUT CARBON STEEL BS:916 3 GLAND NUT CARBON STEEL BS:916 4 GLAND PACKING TEFLON PTFE 5 STEM S.S AISI-410 6 STEM SEAL TEFLON PTFE 7 SEATS TEFLON PTFE 8 BALL S.S. —— 9 CONNECTOR C.I. BS:1452 GR220 10 SEALINGS RUBBER NITRILE 11 BODY C.I.. BS:1452 GR220 12 NUT/ STUD CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B L H~ ∅F ∅G T D~ 15mm 14 128 80 89 35 11.2 110 20mm 17 130 80 98.5 43 11.2 110 25mm 23.5 140 85 108 51 11.2 132 32mm 30 165 110 117.5 62.5 12.7 152 40mm 37 165 115 127 73 14.2 170 50mm 49 203 125 152.5 92.5 15.8 210 65mm 63 223 145 178 105 17.5 250 80mm 78 241 180 190.5 127 19.0 327 100mm 98 310 225 229 157 24.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 TESTING HYDRAULIC. BODY TEST PRESSURE :- 500 psig SEAT TEST PRESSURE :- 500 psig MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 LEVER CARBON STEEL —– 2 NUT CARBON STEEL BS:916 3 GLAND NUT CARBON STEEL BS:916 4 GLAND PACKING TEFLON PTFE 5 STEM SEAL TEFLON PTFE 6 SEAT TEFLON PTFE 7 BALL S.S. —– 8 BODY CAST IRON BS:1452 Gr.220 9 STEM S.S. AISI-410 10 CONNECTOR CAST IRON BS:1452 Gr.220 DIMENSIONS IN mm NOMINAL SIZE ∅A L+1.5 H1~ D~ 15mm 1/2” BSP 84 62 110 20mm 3/4” BSP 90 68 110 25mm 1”BSP 95 68 132 32mm 1.1/4”BSP 107 100 150 40mm 1.1/2” BSP 120 110 170 50mm 2” BSP 143 115 200 65mm 2.1/2”BSP 160 145 250 80mm 3”BSP 180 150 320 100mm 4”BSP 228 220 400 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS WO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS:- SCREWED FEMALE ENDS BSP TO BS:21 TESTING (HYD.) BODY TEST PRESSURE : 300 psig SEAT TEST PRESSURE : 300 psig MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 Lever Carbon Steel —– 2 Nut Carbon Steel BS-916 3 Gland Nut Carbon Steel BS-916 4 Gland Packing Teflon PTFE 5 Stem Seal Teflon PTFE 6 Seat Teflon PTFE 7 Ball S.S. —– 8 Body BRONZE BS: 1400 LG2 9 Stem S.S. AISI-410 10 Connector BRONZE BS: 1400 LG2 11 Sleeve PVC —— DIMENSIONS IN mm NOMINAL SIZE ∅A B L H~ D~ 15mm 14 1/2” BSP 68 65 100 20mm 19 3/4” BSP 75 65 115 25mm 25 1” BSP 83 75 132 32mm 32 1-1/4” BSP 97 100 150 40mm 38 1-1/2” BSP 107 100 170 50mm 48 2” BSP 122 110 215 65mm 63 2-1/2” BSP 148 165 250 80mm 77 3” BSP 164 175 327 100mm 97 4” BSP 214 230 405 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FLAP TYPE DOUBLE DISC , SPRING LOADED SWING TYPE CHECK VALVE BODY SEAT FACING NITRILE MOULDED LINER DISC SEAT FACING S.S./ SGI INTEGRAL FACE END DETAILS SUITABLE FOR INSERTION BETWEEN CLASS-150,BS-10 TABLE D/E , BS:4504,PN:10/16 FLANGES PRESSURE RATING PN-16 ( HYDRAULIC) TESTING (HYD.) BODY – 500 psig. SEAT – 250 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY CAST IRON BS:1452 Gr.220 2 DISC S.S./ S.G.I. AISI 304 / BS:2789 3 SEAT RING RUBBER NITRILE 4 SPRING S.S AISI 304 5 HINGE PIN S.S AISI 304 6 STOP PIN S.S AISI 304 7 BEARING TEFLON P.T.F.E. 8 PLUG/GRUB SCREW CARBON STEEL BS: 916 9 NAME PLATE ALUMINIUM … NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS SINGLE FLAP DISC , SWING TYPE CHECK VALVE BODY SEAT FACING NITRILE MOULDED LINER END DETAILS WAFER SHORT ENDS WITH INTEGRALLY MOULDED RUBBER GASKET. SUITABLE FOR INSERTION BETWEEN CLASS-150,BS-10 TABLE ‘D’ & ‘E’ ,BS:4504,PN-10/16 FLANGES. PRESSURE RATING PN-16 ( HYDRAULIC) TESTING (HYD.) BODY – 500 psig. SEAT – 250 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HOOK M.S. — 2 BODY S.G.I BS:2789 3 DISC S.G.I / S.S. BS:2789 / AISI 304 4 BODY SEAT RUBBER NITRILE 5 O RING RUBBER HIGH NITRILE 6 CSK BOLTS CARBON STEEL BS: 916 DIMENSIONS IN mm NOMINAL SIZE ∅A B+2 40mm 86 16 50mm 97 16 65mm 110 16 80mm 129 16 100mm 160 16 125mm 192 18 150mm 218 21 200mm 272 22 250mm 330 28 300mm 384 30 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS SCREWED IN BONNET, RENEWABLE- BRONZE SEAT & RING, SOFT SEATING AND SUITABLE FOR HIGH PRESSURE IN PETROL INDUSTRY. END DETAILS SCREWED BSP FEMALE AS BS:21 TESTING (HYD.) HYDRAULIC BODY TESTED:- 500 psig. SEAT TESTED:- 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS style=”color:#c41e02;”SPECIFICATIONS 1 BONNET CAST IRON BS:1452 Gr.220 2 GASKET C.A.F. … 3 BODY CAST IRON BS:1452 Gr.220 4 SEAT BRONZE BS:1400 LG2 5 SEAT FACING RUBBER NITRILE 6 BODY RING BRONZE BS:1400 LG2 7 SPLIT PIN BRASS BS:2872 CZ114 8 WASHER ALLUMINIUM … 9 NUT BRASS BS:2872 CZ114 DIMENSIONS IN mm NOMINAL SIZE ∅ A B~ C~ 40mm 1/2”BSP 78 76 70 50mm 2”BSP 80 88 76 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

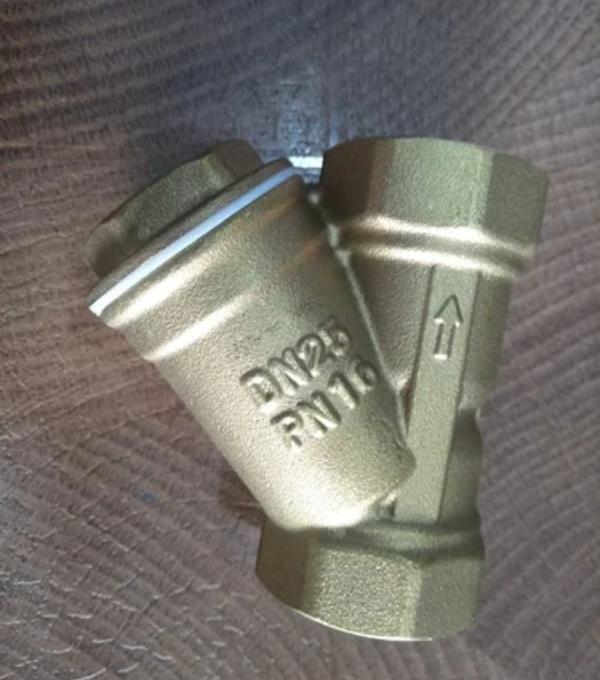

SI MARKED TO IS:778 CL-1 PRODUCT DETAILS INTEGRAL SEAT, CONFORMING TO 1S:778 – 1984 CLASS-1 END DETAILS SCREWED FEMALE ENDS (BSP) BS:21 TESTING (HYD.) HYDRAULIC. BODY TEST PRESSURE :- 1.5 Mpa SEAT TEST PRESSURE :- 1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 NUT BRASS BS:2874 CZ114 4 WASHER BRASS BS:2874 CZ114 5 SPRING S.S. AISI 304 6 SPLIT PIN BRASS BS:2874 CZ114 DIMENSIONS IN mm NOMINAL SIZE ∅A H (APX) NB 15mm 1/2”BSP 65 15 20mm 3/4”BSP 70 20 25mm 1”BSP 75 25 32mm 1.1/4”BSP 85 32 40mm 1.1/2”BSP 95 40 50mm 2”BSP 110 50 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS SCREWED IN BONNET & INTEGRAL SEAT. CONFORMING TO IS:778, Class 1. END DETAILS SCREWED FEMALE ENDS(BSP) AS IS:554 WORKING SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C. TESTING (HYD.) BODY TEST PRESSURE :-1.5 Mpa SEAT TEST PRESSURE :-1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 60 39 20mm 3/4”BSP 70 47 25mm 1”BSP 80 55 32mm 1.1/4”BSP 95 55 40mm 1.1/2”BSP 110 66 50mm 2”BSP 125 79 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PPRODUCT DETAILS BOLTED BONNET, REDUCED BORE , SS (AISI 410) TRIM, CONFORMING TO BS 5352 CLASS 800 END DETAILS SCREWED FEMALE NPT THREADS TO ANSI B1.20.1 OR SOCKET WELDED ENDS AS PER ASME B 16.11 TESTING HYDRAULIC. BODY TESTED:- 207 bar (3000 psig.) SEAT TESTED :- 152 bar (2200 psig.) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HEX. BOLT ALLOY STEEL ASTM A219 Gr.2H/EN8 2 BONNET FORGED CARBON STEEL ASTM A-105 3 GASKET SPIRAL WOUND ASBESTOS FILLED S.S (304) 4 BODY SEAT RING S.S. AISI-410 5 SEAT S.S. AISI-410 6 BODY FORGED CARBON STEEL ASTM-A105 DIMENSIONS IN mm NOMINAL SIZE A L H~ 15mm 1/2″ NPT/SW 90 56 20mm 3/4″ NPT/SW 95 60 25mm 1″ NPT/SW 107 70 40MM 1.1/2″ NPT/SW 130 100 50MM 2″ NPT/SW 145 110 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS INTEGRAL SEAT, CONFORMING TO 1S:778 – 1984 CLASS-1 END DETAILS SCREWED FEMALE ENDS (BSP) BS:21 TESTING (HYD.) HYDRAULIC. BODY TEST PRESSURE :- 1.5 Mpa SEAT TEST PRESSURE :- 1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 NUT BRASS BS:2874 CZ114 4 WASHER BRASS BS:2874 CZ114 5 SPRING S.S. AISI 304 6 SPLIT PIN BRASS BS:2874 CZ114 DIMENSIONS IN mm NOMINAL SIZE ∅A H (APX) NB 15mm 1/2”BSP 65 15 20mm 3/4”BSP 70 20 25mm 1”BSP 75 25 32mm 1.1/4”BSP 85 32 40mm 1.1/2”BSP 95 40 50mm 2”BSP 110 50 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS SCREWED IN BONNET & INTEGRAL SEAT. CONFORMING TO IS:778, Class 1. END DETAILS SCREWED FEMALE ENDS(BSP) AS IS:554 WORKING SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C. TESTING (HYD.) BODY TEST PRESSURE :-1.5 Mpa SEAT TEST PRESSURE :-1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 60 39 20mm 3/4”BSP 70 47 25mm 1”BSP 80 55 32mm 1.1/4”BSP 95 55 40mm 1.1/2”BSP 110 66 50mm 2”BSP 125 79 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PPRODUCT DETAILS BOLTED BONNET, REDUCED BORE , SS (AISI 410) TRIM, CONFORMING TO BS 5352 CLASS 800 END DETAILS SCREWED FEMALE NPT THREADS TO ANSI B1.20.1 OR SOCKET WELDED ENDS AS PER ASME B 16.11 TESTING HYDRAULIC. BODY TESTED:- 207 bar (3000 psig.) SEAT TESTED :- 152 bar (2200 psig.) MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HEX. BOLT ALLOY STEEL ASTM A219 Gr.2H/EN8 2 BONNET FORGED CARBON STEEL ASTM A-105 3 GASKET SPIRAL WOUND ASBESTOS FILLED S.S (304) 4 BODY SEAT RING S.S. AISI-410 5 SEAT S.S. AISI-410 6 BODY FORGED CARBON STEEL ASTM-A105 DIMENSIONS IN mm NOMINAL SIZE A L H~ 15mm 1/2″ NPT/SW 90 56 20mm 3/4″ NPT/SW 95 60 25mm 1″ NPT/SW 107 70 40MM 1.1/2″ NPT/SW 130 100 50MM 2″ NPT/SW 145 110 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
