PRODUCT DETAILS TWO PIECE DESIGN, FULL BORE, TEFLON SEATS & SEAL, S.S.BALL & STEM AND BLOW OFF PROOF STEM WITH LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘D’ TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE M.S —– 2 STEM NUT CARBON STEEL EN-8 3 GLAND NUT CARBON STEEL EN-8 4 GLAND PACKING TEFLON PTFE 5 STEM SEAL TEFLON PTFE 6 SEAT TEFLON PTFE 7 BALL SS ——– 8 BODY BRONZE BS:1400 LG2 9 STEM S.S. AISI-410 10 CONNECTOR BRONZE BS:1400 LG2 11 BOLT/NUT CARBON STEEL BS: 916 12 SEALING RUBBER NITRILE DIMENSIONS IN mm NOMINAL SIZE ∅A L H~ ∅F T D~ 15mm 13.5 83 74 95.3 6.4 110 20mm 17.5 95 74 101.6 6.4 110 25mm 23.5 105 80 114.3 8.0 132 32mm 29 120 100 120.7 8.0 152 40mm 38 125 110 133.4 9.6 170 50mm 48 157 125 152.4 9..6 210 *65mm 63 172 135 165.1 11.2 250 *80mm 77 210 145 184.2 13.0 327 *100mm 98 238 155 216 16.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 OR NPT TO ANSI B1.20.1 TESTING(HYD.) HYDRAULIC. BODY TEST PRESSURE :- 710 psig SEAT TEST PRESSURE:-300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 LEVER SS AISI 304 2 NUT SS AISI 3048 3 GLAND NUT SS AISI 304 4 BODY SS ASTM-351 CF8 5 BALL SS AISI 304, CF8 6 SEAT TEFLON PTFE 7 SLEEVE PVC ——- 8 GLAND PACKING TEFLON PTFE 9 STEM SEAL TEFLON PTFE 10 STEM SS AISI 304 11 CONNECTOR SS ASTM-351 CF8 12 CONNECTOR SEAL TEFLON PTFE DIMENSIONS IN mm NOMINAL SIZE ∅B L H D 15MM 1/2″BSP 60 54 100 20MM 3/4″ BSP 64 58 125 25MM 1″ BSP 80 60 125 32MM 1-1/4″BSP — — — 40MM 1-1/2″BBSP 95 90 165 50MM 2″BSP 112 96 190 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE THREE PIECE DESIGN WITH S.S BALL & STEM, TEFLON SEAT , BLOW OFF PROOF STEM,LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘F’/E/D OR ANSI CLASS-150 OR BS:4504 PN10/16 TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE CARBON STEEL … 2 TOP NUT CARBON STEEL BS:916 3 GLAND NUT CARBON STEEL BS:916 4 GLAND PACKING TEFLON PTFE 5 STEM S.S AISI-410 6 STEM SEAL TEFLON PTFE 7 SEATS TEFLON PTFE 8 BALL S.S. —— 9 CONNECTOR C.I. BS:1452 GR220 10 SEALINGS RUBBER NITRILE 11 BODY C.I.. BS:1452 GR220 12 NUT/ STUD CARBON STEEL BS:916 DIMENSIONS IN mm NOMINAL SIZE ∅B L H~ ∅F ∅G T D~ 15mm 14 128 80 89 35 11.2 110 20mm 17 130 80 98.5 43 11.2 110 25mm 23.5 140 85 108 51 11.2 132 32mm 30 165 110 117.5 62.5 12.7 152 40mm 37 165 115 127 73 14.2 170 50mm 49 203 125 152.5 92.5 15.8 210 65mm 63 223 145 178 105 17.5 250 80mm 78 241 180 190.5 127 19.0 327 100mm 98 310 225 229 157 24.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS FULL BORE, TWO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21 TESTING HYDRAULIC. BODY TEST PRESSURE :- 500 psig SEAT TEST PRESSURE :- 500 psig MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 LEVER CARBON STEEL —– 2 NUT CARBON STEEL BS:916 3 GLAND NUT CARBON STEEL BS:916 4 GLAND PACKING TEFLON PTFE 5 STEM SEAL TEFLON PTFE 6 SEAT TEFLON PTFE 7 BALL S.S. —– 8 BODY CAST IRON BS:1452 Gr.220 9 STEM S.S. AISI-410 10 CONNECTOR CAST IRON BS:1452 Gr.220 DIMENSIONS IN mm NOMINAL SIZE ∅A L+1.5 H1~ D~ 15mm 1/2” BSP 84 62 110 20mm 3/4” BSP 90 68 110 25mm 1”BSP 95 68 132 32mm 1.1/4”BSP 107 100 150 40mm 1.1/2” BSP 120 110 170 50mm 2” BSP 143 115 200 65mm 2.1/2”BSP 160 145 250 80mm 3”BSP 180 150 320 100mm 4”BSP 228 220 400 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS WO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS:- SCREWED FEMALE ENDS BSP TO BS:21 TESTING (HYD.) BODY TEST PRESSURE : 300 psig SEAT TEST PRESSURE : 300 psig MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 Lever Carbon Steel —– 2 Nut Carbon Steel BS-916 3 Gland Nut Carbon Steel BS-916 4 Gland Packing Teflon PTFE 5 Stem Seal Teflon PTFE 6 Seat Teflon PTFE 7 Ball S.S. —– 8 Body BRONZE BS: 1400 LG2 9 Stem S.S. AISI-410 10 Connector BRONZE BS: 1400 LG2 11 Sleeve PVC —— DIMENSIONS IN mm NOMINAL SIZE ∅A B L H~ D~ 15mm 14 1/2” BSP 68 65 100 20mm 19 3/4” BSP 75 65 115 25mm 25 1” BSP 83 75 132 32mm 32 1-1/4” BSP 97 100 150 40mm 38 1-1/2” BSP 107 100 170 50mm 48 2” BSP 122 110 215 65mm 63 2-1/2” BSP 148 165 250 80mm 77 3” BSP 164 175 327 100mm 97 4” BSP 214 230 405 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

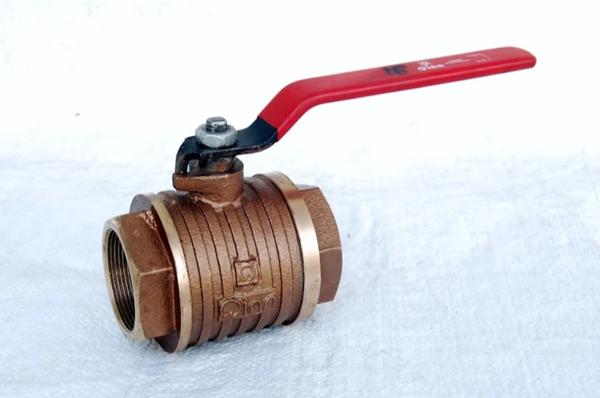

QINN MAKE BRONZE BALL VALVE SCREWED END
