PRODUCT DETAILS SCREWED IN BONNET, INSIDE SCREW, RISING STEM HAVING INTEGRAL SEAT & BRASS STEM. END DETAILS FLANGED END TO BS:10 TABLE D/E; AND ALSO AVAILABLE IN PN-10/16, JIS 5K, 10K, ON DEMAND. WORKING PRESSURE SUITABLE FOR HYDRAULIC LINE BS:4504, PN-10. TESTING HYDRAULIC BODY TEST PRESSURE :- 300 psig. SEAT TEST PRESSURE :- 200 psig. Q-28 A - Qinn BRONZE GLOBE STOP CUM NON RETURN (SDNR) VALVE - NO. 8 quantity 1 Add to cart MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL C.I. BS:1452 Gr.220 4 STEM BRASS BS:2872 CZ114 5 GLAND BRONZE BS:1400 LG2 6 GLAND NUT BRONZE BS:1400 LG2 7 PACKING ASBESTOS … 8 BONNET BRONZE BS:1400 LG2 9 DISC BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE ∅D ∅B L(+1.5) T H (APX) W~ 15mm 95.3 14 56 6.30 76 64 20mm 101.6 18 69 6.30 83 64 25mm 114.3 23 85 8.00 96 76 32mm 120.7 30 90 8.00 112 85 40mm 133.4 38 100 9.50 125 100 50mm 152.4 47 109 9.50 134 100 65mm 165.1 63 140 11.20 164 125 80mm 184 76 170 12.70 190 125 100mm 216 97 200 15.80 215 150 125mm 254 121 … 17.5 … 250 150mm 280 145 260 17.5 320 260 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

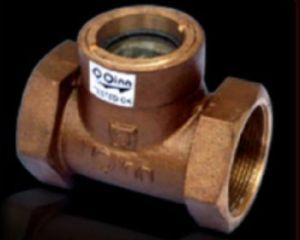

QINN BRONZE SIGHT GLASS FOR FIRE FIGHTING

PRODUCT DETAILS SCREWED IN BONNET , INSIDE SCREW, NON RISING STEM, INTEGRAL SEAT & STURDY HAND WHEEL. END DETAILS FLANGED ENDS TO BS:10, TABLE ‘D’ WORKING SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC TESTING (HYD.) BODY TEST PRESSURE :- 300 psig. SEAT TEST PRESSURE :- 200 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL CAST IRON BS:1452,Gr220 4 STEM BRASS BS:2872,CZ114 5 GLAND NUT BRONZE BS:1400 LG2 6 GLAND BUSH BRONZE BS:1400 LG2 7 GLAND PACKING ASBESTOS —– 8 BONNET BRONZE BS:1400 LG2 9 WEDGE BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 11 STUFFING BOX BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE ∅B L+1.5 H T ∅D ∅W~ 15mm 15 64 102 6.5 95.3 55 20mm 20 76 115 6.5 101.6 60 25mm 25 86 127 8 114.3 75 32mm 32 89 140 8 120.7 85 40mm 40 106 162 9.5 133.4 100 50mm 50 114 188 9.5 152.4 110 65mm 65 138 220 11 165.1 127 80mm 80 143 249 12.7 184.2 127 100mm 100 179 320 15.8 216 160 125mm 120 230 375 20 254 200 150mm 147 230 425 22 280 210 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOT

ISI MARKED TO IS:778, CL-I PRODUCT DETAILS SCREWED IN BONNET , INSIDE SCREW, NON-RISING STEM ,INTEGRAL SEATING BACK SEAT ARRANGMENT WITH STURDY HAND WHEEL OPERATING. END DETAILS FLANGE ENDS TO BS:4504 PN10/16 OR IS:778 WORKING SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC TESTING (HYD.) BODY TEST PRESSURE :- 1.5 Mpa SEAT TEST PRESSURE :- 1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT CARBON STEEL BS:916 2 WASHER CARBON STEEL —– 3 HAND WHEEL CAST IRON BS:1452,Gr200 4 STEM BRASS BS:2872,CZ114 5 GLAND NUT BRONZE BS:1400 LG2 6 GLAND BUSH BRONZE BS:1400 LG2 7 GLAND PACKING ASBESTOS —– 8 STUFFING BOX BRONZEL BS:1400 LG2 9 BONNET BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400,LG2 11 WEDGE BRONZE BS:1400,LG2 DIMENSIONS IN mm NOMINAL SIZE ∅B L+1.5 T ∅D+1.0 H~ ∅W~ 15mm 15 72 6.4 95 102 55 20mm 20 76 6.4 105 115 60 25mm 25 90 8.0 115 129 75 32mm 32 100 8.0 140 140 85 40mm 40 110 9.5 150 162 100 50mm 50 120 11.0 165 188 110 65mm 65 140 13.5 185 220 115 80mm 80 150 13.5 200 249 127 100mm 100 190 16.5 220 320 160 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

SI MARKED TO IS:778, CL-I PRODUCT DETAILS SCREWED IN BONNET , INSIDE SCREW, NON-RISING STEM, INTEGRAL SEATING, BACK SEAT ARRANGMENT WITH STURDY HAND WHEEL OPERATING. END DETAILS SCREWED FEMALE ENDS BSP TO BS:21/IS:554 WORKING SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC TESTING (HYD.) BODY TEST PRESSURE:- 1.5 Mpa SEAT TEST PRESSURE:- 1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 NUT M.S. BS:916 2 WASHER M.S. —– 3 HAND WHEEL CAST IRON BS:1452 Gr220 4 STEM BRASS BS:2872 CZ114 5 GLAND NUT BRONZE BS:1400 LG2 6 GLAND BUSH BRONZE BS:1400 LG2 7 GLAND PACKING ASBESTOS —– 8 STUFFING BOX BRONZE BS:1400 LG2 9 BONNET BRONZE BS:1400 LG2 10 BODY BRONZE BS:1400 LG2 11 WEDGE BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A ∅B L H~ ∅W~ 15mm 1/2” BSP 15 60 107 55 20mm 3/4” BSP 20 60 114 60 25mm 1” BSP 25 70 129 75 32mm 1.1/4” BSP 32 80 143 85 40mm 1.1/2” BSP 40 90 164 100 50mm 2” BSP 50 100 191 110 65mm 2.1/2” BSP 65 105 223 115 80mm 3” BSP 80 125 256 127 100mm 4” BSP 100 160 299 158 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS TWO PIECE DESIGN, FULL BORE, TEFLON SEATS & SEAL, S.S.BALL & STEM AND BLOW OFF PROOF STEM WITH LEVER OPERATED END DETAILS FLANGED TO BS-10 TABLE ‘D’ TESTING(HYD.) BODY TEST PRESSURE : 300 psig. SEAT TEST PRESSURE : 300 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 HANDLE M.S —– 2 STEM NUT CARBON STEEL EN-8 3 GLAND NUT CARBON STEEL EN-8 4 GLAND PACKING TEFLON PTFE 5 STEM SEAL TEFLON PTFE 6 SEAT TEFLON PTFE 7 BALL SS ——– 8 BODY BRONZE BS:1400 LG2 9 STEM S.S. AISI-410 10 CONNECTOR BRONZE BS:1400 LG2 11 BOLT/NUT CARBON STEEL BS: 916 12 SEALING RUBBER NITRILE DIMENSIONS IN mm NOMINAL SIZE ∅A L H~ ∅F T D~ 15mm 13.5 83 74 95.3 6.4 110 20mm 17.5 95 74 101.6 6.4 110 25mm 23.5 105 80 114.3 8.0 132 32mm 29 120 100 120.7 8.0 152 40mm 38 125 110 133.4 9.6 170 50mm 48 157 125 152.4 9..6 210 *65mm 63 172 135 165.1 11.2 250 *80mm 77 210 145 184.2 13.0 327 *100mm 98 238 155 216 16.0 396 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS WO PIECE DESIGN WITH STAINLESS STEEL BALL & BLOW OFF PROOF STEM, TEFLON SEAT & SEAL, LEVER OPERATED. END DETAILS:- SCREWED FEMALE ENDS BSP TO BS:21 TESTING (HYD.) BODY TEST PRESSURE : 300 psig SEAT TEST PRESSURE : 300 psig MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 Lever Carbon Steel —– 2 Nut Carbon Steel BS-916 3 Gland Nut Carbon Steel BS-916 4 Gland Packing Teflon PTFE 5 Stem Seal Teflon PTFE 6 Seat Teflon PTFE 7 Ball S.S. —– 8 Body BRONZE BS: 1400 LG2 9 Stem S.S. AISI-410 10 Connector BRONZE BS: 1400 LG2 11 Sleeve PVC —— DIMENSIONS IN mm NOMINAL SIZE ∅A B L H~ D~ 15mm 14 1/2” BSP 68 65 100 20mm 19 3/4” BSP 75 65 115 25mm 25 1” BSP 83 75 132 32mm 32 1-1/4” BSP 97 100 150 40mm 38 1-1/2” BSP 107 100 170 50mm 48 2” BSP 122 110 215 65mm 63 2-1/2” BSP 148 165 250 80mm 77 3” BSP 164 175 327 100mm 97 4” BSP 214 230 405 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS SCREWED IN BONNET & INTEGRAL SEAT. CONFORMING TO IS:778, Class 1. END DETAILS SCREWED FEMALE ENDS(BSP) AS IS:554 WORKING SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C. TESTING (HYD.) BODY TEST PRESSURE :-1.5 Mpa SEAT TEST PRESSURE :-1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 60 39 20mm 3/4”BSP 70 47 25mm 1”BSP 80 55 32mm 1.1/4”BSP 95 55 40mm 1.1/2”BSP 110 66 50mm 2”BSP 125 79 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

ISI MARKED TO IS:778 CL-1 PRODUCT DETAILS SCREWED IN BONNET & INTEGRAL SEAT. CONFORMING TO IS:778, Class 1. END DETAILS SCREWED FEMALE ENDS(BSP) AS IS:554 WORKING SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C. TESTING (HYD.) BODY TEST PRESSURE :-1.5 Mpa SEAT TEST PRESSURE :-1.0 Mpa MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BODY BRONZE BS:1400 LG2 2 DISC BRONZE BS:1400 LG2 3 BONNET BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE A L(+1.5) H~ 15mm 1/2”BSP 60 39 20mm 3/4”BSP 70 47 25mm 1”BSP 80 55 32mm 1.1/4”BSP 95 55 40mm 1.1/2”BSP 110 66 50mm 2”BSP 125 79 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
