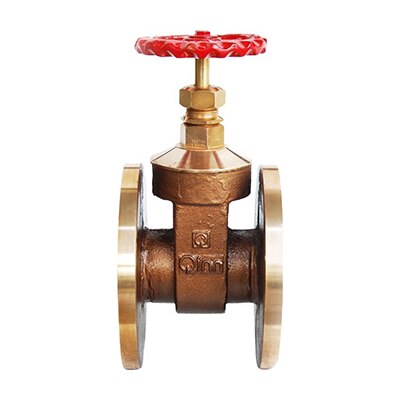

Q-52 – Qinn BRONZE GATE VALVE FLANGED ISI MARKED

ISI MARKED TO IS:778, CL-I

PRODUCT DETAILS

SCREWED IN BONNET , INSIDE SCREW, NON-RISING STEM ,INTEGRAL SEATING BACK SEAT ARRANGMENT WITH STURDY HAND WHEEL OPERATING.

END DETAILS

FLANGE ENDS TO BS:4504 PN10/16 OR IS:778

WORKING

SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC

TESTING (HYD.)

BODY TEST PRESSURE :- 1.5 Mpa

SEAT TEST PRESSURE :- 1.0 Mpa

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HAND WHEEL CAST IRON BS:1452,Gr200

4 STEM BRASS BS:2872,CZ114

5 GLAND NUT BRONZE BS:1400 LG2

6 GLAND BUSH BRONZE BS:1400 LG2

7 GLAND PACKING ASBESTOS —–

8 STUFFING BOX BRONZEL BS:1400 LG2

9 BONNET BRONZE BS:1400 LG2

10 BODY BRONZE BS:1400,LG2

11 WEDGE BRONZE BS:1400,LG2

DIMENSIONS IN mm

NOMINAL SIZE ∅B L+1.5 T ∅D+1.0 H~ ∅W~

15mm 15 72 6.4 95 102 55

20mm 20 76 6.4 105 115 60

25mm 25 90 8.0 115 129 75

32mm 32 100 8.0 140 140 85

40mm 40 110 9.5 150 162 100

50mm 50 120 11.0 165 188 110

65mm 65 140 13.5 185 220 115

80mm 80 150 13.5 200 249 127

100mm 100 190 16.5 220 320 160

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
