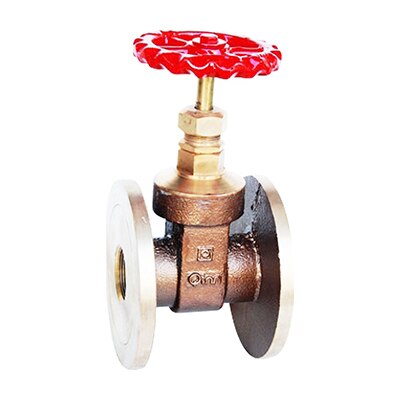

Q-7 – Qinn BRONZE GATE VALVE FLANGED ENDS

PRODUCT DETAILS

SCREWED IN BONNET , INSIDE SCREW,

NON RISING STEM, INTEGRAL SEAT & STURDY HAND WHEEL.

END DETAILS

FLANGED ENDS TO BS:10, TABLE ‘D’

WORKING

SUITABLE FOR NON -SHOCK HYDRAULIC LINE TEMP.UPTO 45ºC

TESTING (HYD.)

BODY TEST PRESSURE :- 300 psig.

SEAT TEST PRESSURE :- 200 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HAND WHEEL CAST IRON BS:1452,Gr220

4 STEM BRASS BS:2872,CZ114

5 GLAND NUT BRONZE BS:1400 LG2

6 GLAND BUSH BRONZE BS:1400 LG2

7 GLAND PACKING ASBESTOS —–

8 BONNET BRONZE BS:1400 LG2

9 WEDGE BRONZE BS:1400 LG2

10 BODY BRONZE BS:1400 LG2

11 STUFFING BOX BRONZE BS:1400 LG2

DIMENSIONS IN mm

NOMINAL SIZE ∅B L+1.5 H T ∅D ∅W~

15mm 15 64 102 6.5 95.3 55

20mm 20 76 115 6.5 101.6 60

25mm 25 86 127 8 114.3 75

32mm 32 89 140 8 120.7 85

40mm 40 106 162 9.5 133.4 100

50mm 50 114 188 9.5 152.4 110

65mm 65 138 220 11 165.1 127

80mm 80 143 249 12.7 184.2 127

100mm 100 179 320 15.8 216 160

125mm 120 230 375 20 254 200

150mm 147 230 425 22 280 210

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOT
