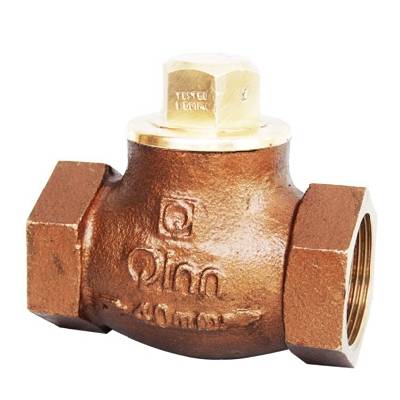

Q-54 – Qinn BRONZE HORIZONTAL LIFT CHECK VALVE
In stock
Description
ISI MARKED TO IS:778 CL-1
PRODUCT DETAILS
SCREWED IN BONNET & INTEGRAL SEAT.
CONFORMING TO IS:778, Class 1.
END DETAILS
SCREWED FEMALE ENDS(BSP) AS IS:554
WORKING
SUITABLE FOR NON-SHOCK HYDRAULIC LINE TEMP. UP TO 45° C.
TESTING (HYD.)
BODY TEST PRESSURE :-1.5 Mpa
SEAT TEST PRESSURE :-1.0 Mpa
MATERIALS OF CONSTRUCTION
PART NO. PART’S NAME MATERIALS SPECIFICATIONS
1 BODY BRONZE BS:1400 LG2
2 DISC BRONZE BS:1400 LG2
3 BONNET BRONZE BS:1400 LG2
DIMENSIONS IN mm
NOMINAL SIZE A L(+1.5) H~
15mm 1/2”BSP 60 39
20mm 3/4”BSP 70 47
25mm 1”BSP 80 55
32mm 1.1/4”BSP 95 55
40mm 1.1/2”BSP 110 66
50mm 2”BSP 125 79
NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
