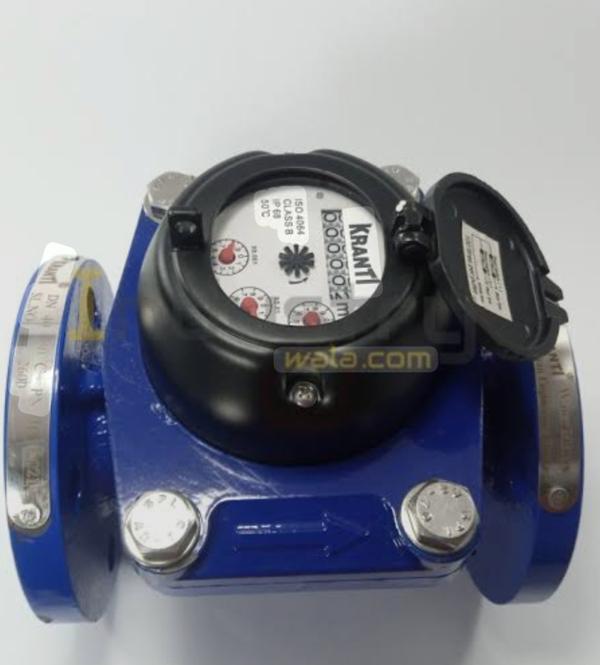

Kranti Woltman Type Water Meter Class B / I S 4064

PRODUCT DETAILS SPRING LOADED, SELF OPERATED, ALUMINUM DISC, INTEGRAL SEATING AND COVERED EXHAUST END DETAILS SCREWED FEMALE END BSP TO BS:21 WORKING FOR PREVENTING VAPOUR LOSS IN CHEMICAL PROCESS INDUSTRIES OR VESSELS CONTAINING PETROL,THINER,SPIRIT ETC. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 BONNET BRONZE BS:1400 LG2 2 SEAT BRONZE BS:1400 LG2 3 RETAINER BRONZE BS:1400 LG2 4 DISC ALUMINIUM … 5 SPRING STAINLESS STEEL AISI-304 6 BODY BRONZE BS:1400 LG2 DIMENSIONS IN mm NOMINAL SIZE ∅A H~ 40mm 1.1/2” BSP 96.0 50mm 2” BSP 96.0 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

RODUCT DETAILS SPHERICAL NITRILE BALL , SELF OPERATING, COVERED EXHAUST. END DETAILS MALE SCREWED END BSP TO BS:21 WORKING VERTICAL INSTALLATION IN WATER SEWAGE LINE OF LONG DISTANCE TO ACCUMULATE AIR RESISTANCE. TO GET BEST PERFORMANCE, THIS VALVE TO BE MOUNTED ON HIGH POINTS OF THE LINE, HAVING PERIODIC INTERVALS TO EACH OTHER. TESTING HYDRAULIC. BODY TESTED :- 250 psig. SEAT TESTED :- 150 psig. MATERIALS OF CONSTRUCTION PART NO. PART’S NAME MATERIALS SPECIFICATIONS 1 CAP BRONZE BS:1400, LG2 2 RETAINER BRONZE BS:1400, LG2 3 BODY BRONZE BS:1400, LG2 4 BALL RUBBER NITRILE DIMENSIONS IN mm NOMINAL SIZE A H~ 25mm 1” BSP 110 40mm 1.1/2” BSP 130 50mm 2” BSP 150 NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.

PRODUCT DETAILS SQUARE SECTION PATTERN, RENEWABLE GRAPHITED ASBESTOS SEATING WITH BRONZE PLUG & LEVER OPERATED COMPLETE SET. END DETAILS FLANGE ENDS TO BS:10 TABLE-F TESTING 300 psig. (Hyd.) WORKING PRESSURE SUITABLE FOR STEAM LINE UPTO 150 psig. MAX. WORKING TEMP. 437º F (225º c) MATERIALS OF CONSTRUCTION S. NO. PART’S NAME MATERIALS SPECIFICATIONS 1 PLUG BRONZE BS:1400 LG2 2 GASKET STEAM JOINTING —– 3 SIDE NUT BRONZE BS:1400 LG2 4 GASKET STEAM JOINTING —– 5 UPPER ARM BRONZE BS:1400 LG2 6 PACKING GRAPHITED ASBESTOS —– 7 GLAND BRONZE BS:1400 LG2 8 GLAND NUT BRONZE BS:1400 LG2 9 GLASS TUBE GLASS —– 10 LOWER ARM BRONZE BS:1400 LG2 11 GASKET STEAM JOINTING —– 12 DRAIN COCK BRONZE BS:1400 LG2 13 NUT BRONZE BS:1400 LG2 14 PLUG BRONZE BS:1400 LG2 15 UNION NUT BRONZE BS:1400 LG2 16 TAIL PIPE BRASS BS:2872 CZ114 17 BOTTOM NUT BRONZE BS:1400 LG2 18 BODY SEAT ASBESTOS —–

RODUCT DETAILS END DETAILS SCREWED MALE END BSP TO BS:21 TESTING 300 psig.(Hyd.) WORKING PRESSURE SUITABLE FOR STEAM LINE UPTO 150 psig MAX. WORKING TEMP. 437º F (225º c) MATERIALS OF CONSTRUCTION S. NO. PART’S NAME MATERIALS SPECIFICATIONS 1 PLUG BRONZE BS:1400 LG2 2 GASKET STEAM JOINTING ——— 3 SIDE NUT BRONZE BS:1400 LG2 4 GASKET STEAM JOINTING ———- 5 UPPER ARM BRONZE BS:1400 LG2 6 PACKING GRAPHITED ASBESTOS ———— 7 GLAND BRONZE BS:1400 LG2 8 GLAND NUT BRONZE BS:1400 LG2 9 GLASS TUBE GLASS ———– 10 LOWER ARM BRONZE BS:1400 LG2 11 GASKET STEAM JOINTING ———— 12 DRAIN COCK BRONZE BS:1400 LG2 13 PLUG NUT BRONZE BS:1400 LG2 14 PLUG BRONZE BS:1400 LG2 15 UNION NUT BRONZE BS:1400 LG2 16 TAIL PIPE BRASS BS:2872 CZ114 17 LOCK NUT BRONZE BS:1400 LG2 18 BOTTOM NUT BRONZE BS:1400 LG2
