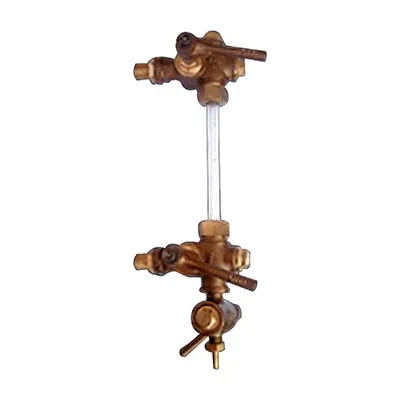

Q-111 – Qinn BRONZE WATER LEVEL GAUGE (ASBESTOS PACKED)

RODUCT DETAILS

END DETAILS

SCREWED MALE END BSP TO BS:21

TESTING

300 psig.(Hyd.)

WORKING PRESSURE

SUITABLE FOR STEAM LINE UPTO 150 psig MAX. WORKING TEMP. 437º F (225º c)

MATERIALS OF CONSTRUCTION

S. NO. PART’S NAME MATERIALS SPECIFICATIONS

1 PLUG BRONZE BS:1400 LG2

2 GASKET STEAM JOINTING ———

3 SIDE NUT BRONZE BS:1400 LG2

4 GASKET STEAM JOINTING ———-

5 UPPER ARM BRONZE BS:1400 LG2

6 PACKING GRAPHITED ASBESTOS ————

7 GLAND BRONZE BS:1400 LG2

8 GLAND NUT BRONZE BS:1400 LG2

9 GLASS TUBE GLASS ———–

10 LOWER ARM BRONZE BS:1400 LG2

11 GASKET STEAM JOINTING ————

12 DRAIN COCK BRONZE BS:1400 LG2

13 PLUG NUT BRONZE BS:1400 LG2

14 PLUG BRONZE BS:1400 LG2

15 UNION NUT BRONZE BS:1400 LG2

16 TAIL PIPE BRASS BS:2872 CZ114

17 LOCK NUT BRONZE BS:1400 LG2

18 BOTTOM NUT BRONZE BS:1400 LG2
