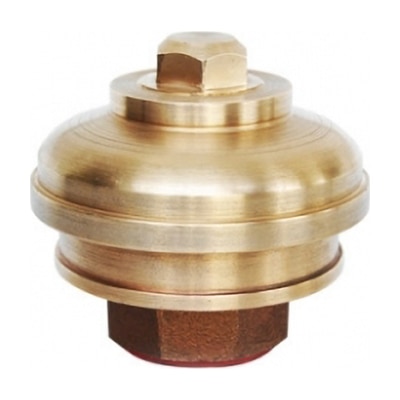

Q-75 – Qinn BRONZE BREATHER VALVE (TERRACE VALVE)

PRODUCT DETAILS

SPRING LOADED, SELF OPERATED, ALUMINUM DISC, INTEGRAL SEATING AND COVERED EXHAUST

END DETAILS

SCREWED FEMALE END BSP TO BS:21

WORKING

FOR PREVENTING VAPOUR LOSS IN CHEMICAL PROCESS INDUSTRIES OR VESSELS CONTAINING PETROL,THINER,SPIRIT ETC.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BONNET BRONZE BS:1400 LG2

2 SEAT BRONZE BS:1400 LG2

3 RETAINER BRONZE BS:1400 LG2

4 DISC ALUMINIUM …

5 SPRING STAINLESS STEEL AISI-304

6 BODY BRONZE BS:1400 LG2

DIMENSIONS IN mm

NOMINAL SIZE ∅A H~

40mm 1.1/2” BSP 96.0

50mm 2” BSP 96.0

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
