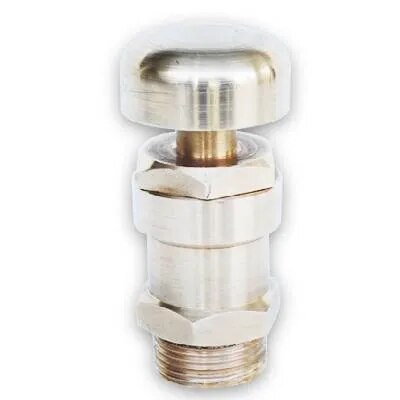

Q-45 – Qinn BRONZE AIR RELEASE VALVEQ-45 – Qinn BRONZE AIR RELEASE VALVE

RODUCT DETAILS

SPHERICAL NITRILE BALL , SELF OPERATING, COVERED EXHAUST.

END DETAILS

MALE SCREWED END BSP TO BS:21

WORKING

VERTICAL INSTALLATION IN WATER SEWAGE LINE OF LONG DISTANCE TO ACCUMULATE AIR RESISTANCE. TO GET BEST PERFORMANCE, THIS VALVE TO

BE MOUNTED ON HIGH POINTS OF THE LINE, HAVING PERIODIC INTERVALS TO EACH OTHER.

TESTING

HYDRAULIC.

BODY TESTED :- 250 psig.

SEAT TESTED :- 150 psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 CAP BRONZE BS:1400, LG2

2 RETAINER BRONZE BS:1400, LG2

3 BODY BRONZE BS:1400, LG2

4 BALL RUBBER NITRILE

DIMENSIONS IN mm

NOMINAL SIZE A H~

25mm 1” BSP 110

40mm 1.1/2” BSP 130

50mm 2” BSP 150

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
