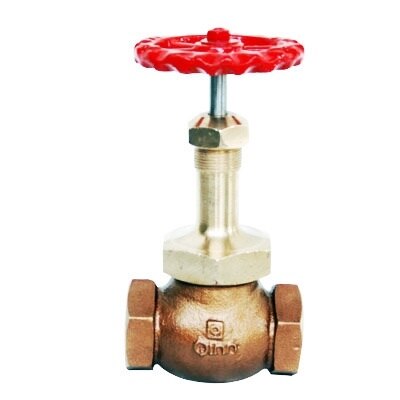

Q-20 – Qinn UNION BONNET WHEEL VALVE NO.9 WITH TEFLON SEAT

PRODUCT DETAILS

SCREWED ON BONNET, INSIDE SCREW, INTEGRAL SEAT WITH TEFLON SEAT FACING AND STURDY HAND WHEEL OPERATED.

END DETAILS

SCREWED BSP PARALLEL TO BS:21

TESTING

HYDRAULIC.

BODY TEST PRESSURE :- 500 Psig.

SEAT TEST PRESSURE :- 350 Psig.

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 BODY BRONZE BS:1400 LG2

2 BONNET BRONZE BS:1400 LG2

3 GLAND NUT BRONZE BS:1400 LG2

4 GLAND BRONZE BS:1400 LG2

5 DISC NUT & WASHER BRASS BS:2874 CZ-114

6 SPINDLE BRASS/S.S. BS:2874 CZ114/AISI-410

7 SEAT S.S./BRONZE AISI-410/BS:1400 LG2

8 SEAT FACING TEFLON PTFE

9 GLAND PACKING ASBESTOS —–

10 HAND WHEEL CAST IRON BS:1452 Gr.220

11 WASHER CARBON STEEL —–

12 NUT CARBON STEEL BS:916

DIMENSIONS IN mm

NOMINAL SIZE ∅D L(+1.5) H (APX) W (APX)

15mm 1/2” BSP 70 133 65

20mm 3/4” BSP 85 149 76

25mm 1” BSP 103 164 84

32mm 1.1/4” BSP 110 179 97

40mm 1.1/2” BSP 120 205 117

50mm 2” BSP 148 214 130

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NO
