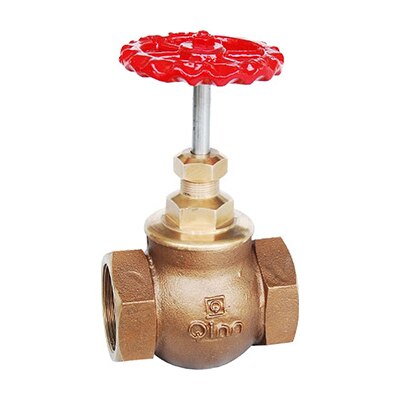

Q-9 – Qinn BRONZE GLOBE VALVE NO.5

PRODUCT DETAILS

SCREWED IN BONNET, INSIDE SCREWED,

HAVING RENEWABLE S.S. WORKING PARTS.

END DETAILS

SCREWED FEMALE ENDS BSP TO BS:21

TESTING

HYDRAULIC.

BODY TEST PRESSURE :- 500 psig.

SEAT TEST PRESSURE :- 300 psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HAND WHEEL C.I. BS:1452,Gr.220

4 STEM S.S. AISI:410

5 GLAND NUT BRONZE BS:1400,LG2

6 GLAND BRONZE BS:1400,LG2

7 GLAND PACKING ASBESTOS —–

8 BONNET BRONZE BS:1400,LG2

9 BODY BRONZE BS:1400,LG2

10 SEAT S.S. AISI:410

11 BODY RING S.S. AISI:410

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
