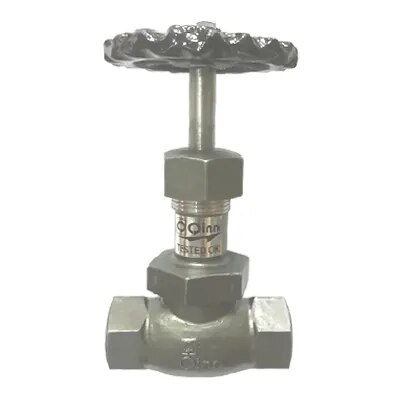

Q-69 – Qinn SS UNION BONNET GLOBE VALVE NO. 9

PRODUCT DETAILS

SCREWED ON BONNET, INSIDE SCREW, RISING STEM, INTEGRAL SEAT WITH SS(AISI-410) WORKING PARTS.

END DETAILS

SCREWED FEMALE ENDS BSP TO BS:21

TESTING

HYDRAULIC.

BODY TEST PRESSURE :- 40Kg/cm2.

SEAT TEST PRESSURE :- 30Kg/cm2.

MATERIALS OF CONSTRUCTION

PART NO. PARTS MATERIALS SPECIFICATION

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HAND WHEEL CAST IRON BS:1452,Gr.220

4 STEM SS AISI-410

5 GLAND NUT SS ASTM A743-CA40

6 GLAND BUSH SS/BRONZE AISI-410/BS:1400 LG2

7 GLAND PACKING GRAPHITED

ASBESTOS —–

8 BONNET SS ASTM A743-CA40

9 BODY SS ASTM A743-CA40

10 SEAT SS AISI-410

DIMENSIONS IN mm

NOMINAL SIZE ∅A L(+1.5) H~ W~

15mm 1/2” BSP 70 130 65

20mm 3/4” BSP 80 145 76

25mm 1” BSP 90 160 84

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
