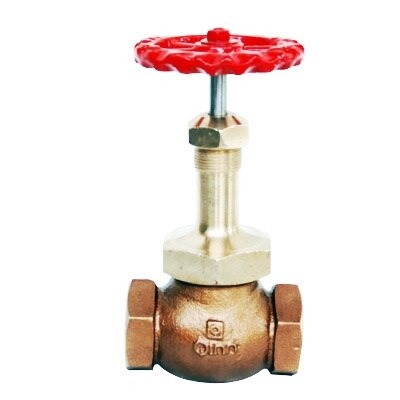

Q-4 – Qinn BRONZE UNION BONNET WHEEL VALVE NO. 9

PRODUCT DETAILS

SCREWED ON BONNET,INSIDE SCREW ,RISING STEM WITH SS-410 RENEWABLE TRIM.

END DETAILS

SCREWED FEMALE ENDS BSP TO BS:21

TESTING

HYDRAULIC.

BODY TEST PRESSURE :- 500psig

SEAT TEST PRESSURE :- 350 psig

MATERIALS OF CONSTRUCTION

PART NO. PART’S NAME MATERIALS SPECIFICATIONS

1 NUT CARBON STEEL BS:916

2 WASHER CARBON STEEL —–

3 HAND WHEEL CAST IRON BS:1452,Gr.220

4 STEM SS AISI-410

5 GLAND NUT BRONZE BS:1400,LG2

6 GLAND BUSH BRONZE BS:1400,LG2

7 GLAND PACKING ASBESTOS —–

8 BONNET BRONZE BS:1400,LG2

9 SEAT NUT BRONZE BS:1400,LG2

10 BODY BRONZE. BS:1400,LG2

11 SEAT SS AISI-410

12 BODY SEAT RING SS AISI-410

DIMENSIONS IN mm

NOMINAL SIZE ∅A L(+1.5) H~ W~

15mm 1/2” BSP 70 133 65

20mm 3/4” BSP 85 149 76

25mm 1” BSP 103 164 84

32mm 1.1/4” BSP 110 179 97

40mm 1.1/2” BSP 122 205 117

50mm 2” BSP 148 214 130

65mm 2.1/2” BSP 180 295 160

80mm 3” BSP 200 305 160

NOTE:- DUE TO CONTINOUS DEVELOPMENT PROGRAMME, DESIGN & DATA IN THIS LEAFLET ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE.
