A quotation for a “multi check valve” is not enough to identify the valve you will receive: Mumbai sellers can use that phrase for a multi-door spring-loaded wafer valve or a dual-plate check valve. By the end, you will know which drawing, specifications, channel evidence, stock details, and cost items to request before placing an order.
Key takeaways
- Demand the exact Satyam model or catalogue reference before comparing quotations.
- Specify size, pressure class, body material, trim, connection, and test requirements.
- Match the valve to flow direction, pipe layout, fluid, temperature, and pressure.
- Confirm stock, channel status, landed cost, and inspection documents before payment.
Identify the Satyam valve design before comparing sellers
Do not compare two quotations until “multi check valve” means the same design. A Mumbai seller may use it for a multi-door, spring-assisted wafer valve or a dual-plate check valve. Anyone searching for satyam for multi check valve in mumbai should demand the exact Satyam model or catalogue reference, never “Satyam type” or “equivalent.”
1. Request the manufacturer’s sectional drawing. It must show the number of doors or discs, spring arrangement, seat design, flow-direction arrow, and face-to-face dimension. A multi-door or spring-assisted valve uses several closure elements and spring force to react quickly to reverse flow; a single-disc, swing, or lift valve behaves differently.
Dual-plate construction is not interchangeable, and wafer describes the body fitting rather than one universal internal mechanism. Pressure drop, cracking pressure, and disc-chatter risk depend on that design.
2. Put the nominal size in the enquiry, but do not select by pipe diameter alone. Confirm whether the construction is wafer, threaded, flanged, socket-ended, or another type; a matching bore can still fail against existing flange drilling or face-to-face space. State the applicable thread or flange standard and installation direction.
3. Give the supplier minimum and maximum flow, operating pressure, fluid, temperature, and horizontal or vertical installation. Ask for cracking pressure, allowable pressure drop, and orientation limits. The supplier can then check low-flow chatter and reverse-flow closure instead of offering a valve that merely fits the pipe.
Put the technical fields into one comparable quotation
Send every Satyam multi check valve supplier the same written specification; otherwise, a multi check valve price in mumbai is only a catalogue number.
| Field | Required quotation entry | Why it matters |
|---|---|---|
| Nominal bore, pressure class, maximum working pressure | Exact size and rating | Confirms duty |
| Pressure-temperature rating | Values at operating temperature | Prevents overrating |
| Body, disc or door, spring, and seat materials | Material grades | Exposes unsuitable construction |
| End connection and standard | Thread or flange standard | Confirms connection |
| Face-to-face length | Manufacturer’s dimension | Fits the spool |
| Allowable medium and temperature range | Fluid and limits | Rejects unapproved service |
| Flow direction and orientation | Arrow, horizontal or vertical position | Prevents incorrect installation |
| Minimum operating flow, cracking pressure, allowable pressure drop | Values or certified curves | Controls chatter and pump loss |
| Inspection and testing | Pressure-test standard and leakage acceptance criterion | Makes acceptance measurable |
| Material test certificates | Heat, batch, or serial traceability | Supports project records |
Compare flange drilling, bolt-hole coverage, gasket arrangement, and surrounding clearance. A wafer valve is not automatically interchangeable with another wafer valve.
For steam, require written steam-service suitability, seat and spring materials, thermal-cycle limits, and water-hammer assessment. Do not accept a water-service elastomer seat by assumption.
For petroleum, hydrocarbon, or pipeline duty, state whether API 594, API 6D, fire-safe construction, fugitive-emission control, or material traceability applies. For fire-fighting, request the exact UL, FM, or specified authority listing for the quoted model and size.
Match the valve to the service and the pipe layout
Use a multi check valve where its closure arrangement matches the operating profile: pump discharge, clean-water lines, compressed-air systems, selected boiler auxiliaries, approved fire-water circuits, and process piping with stable flow. A nominal-bore match alone is unsafe.
Check low-flow behaviour as carefully as maximum flow. Insufficient flow can cause disc chatter, excessive pressure loss, or poor closure during pump cycling. Confirm the product drawing permits horizontal or vertical installation; in a vertical line, verify the flow arrow and spring or disc behaviour instead of accepting an “all-position” claim.
Use this selection checklist:
- Nominal bore and end connection: threaded, flanged, socket-ended, or another type.
- Pressure class, maximum working pressure, pressure-temperature rating, and temperature range.
- Fluid, allowable media, minimum flow, maximum flow, cracking pressure, and allowable pressure drop.
- Horizontal or vertical orientation, flow direction, and spring or disc response.
- Face-to-face length against the spool piece, plus clearance for removal and inspection.
- Required approval, including the exact UL or FM listing for the model and size in fire-water service.
- Upstream strainer requirements and how cleaning it will affect isolation.
Do not use a standard valve without written suitability for slurry, dirty or fibrous liquids, severe pulsation, high temperature, high pressure, steam, hydrocarbons, or a specified non-return-valve standard. Steam service demands explicit seat and spring materials, temperature limits, thermal-cycle suitability, and water-hammer assessment.
Verify a Mumbai seller’s stock and Satyam channel claim

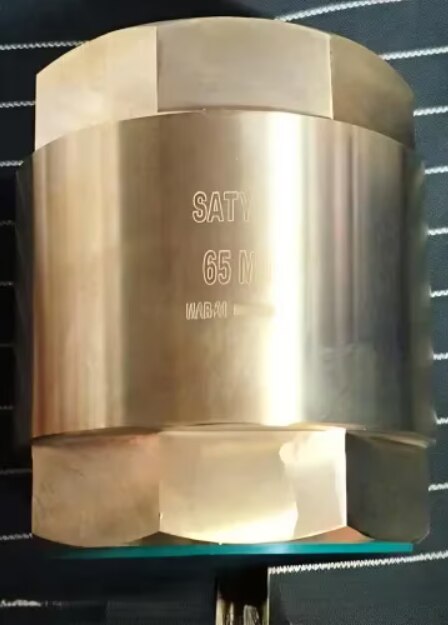

A multi check valve dealer in mumbai must tell you whether the quoted valve is physically in Mumbai stock or will be procured after your purchase order. Request a current photograph of the valve and nameplate showing the model, size, class, material marking, batch or serial number, and manufacturer identification.
Ask the seller to confirm these points in writing:
- The valve is new, sealed, and the exact Satyam make and model specified in your order.
- The dispatch date is committed in writing, not described only as “ready stock”.
- The technical drawing, model reference, and stock photograph refer to the same size and pressure class.
- The test certificate will identify the supplied heat, batch, or serial number.
The search phrase satyam valve distributor nagdevi is a lead for channel verification, not proof of authorisation. Ask for a current manufacturer appointment letter, a manufacturer website listing, or written manufacturer confirmation naming the dealer, territory, and validity period.
Navkar Enterprises -Texas Valves (India) can be one Mumbai contact for a quotation, but request the same evidence from it as from any other seller.
| Evidence | What it establishes | What it does not establish |
|---|---|---|
| Current nameplate photograph | Identifies the offered valve | Does not prove authorisation |
| Appointment letter or manufacturer confirmation | Supports channel status | Does not prove physical stock |
| Written dispatch commitment | Sets a delivery obligation | Does not confirm technical suitability |
If a seller offers a substitution, require written disclosure of the different make and obtain end-user approval before acceptance. This prevents a mixed-brand valve being supplied against “Satyam type” or “equivalent.”
Related product
 | MULTI CHECK VALVE NOW AVAILABLE AT NAVKAR ENTERPRISES... SIZES AVAILABLE 15MM TO 80MM... View product → |
Break down the delivered price and inspect the valve on receipt
A meaningful multi check valve price in Mumbai includes more than the valve body. Ask the seller to separate these quotation lines:
- Ex-stock valve price, GST, freight, packing, inspection, testing, documentation, and installation
- Special certification, material traceability, hydrostatic testing, and the test certificate
- Material test certificates, special gaskets, and delivery to your site
Record the quotation validity and dispatch lead time. A locally stocked valve and one imported against your order carry different schedule risks.
| Supply position | What to verify | Main schedule risk |
|---|---|---|
| Locally stocked | Current photograph, exact nameplate, size and class, batch or serial number, and written dispatch date | Stock may not match the quoted specification |
| Imported against order | Manufacturing status, expected arrival, inspection documents, and validity of the quoted price | Freight, customs delay, and specification changes |
On receipt, match the nameplate to the purchase order for make, model, nominal size, pressure class, materials, and flow arrow. Inspect the casting or stamping, flange or thread dimensions, seat, accessible spring or disc movement, protective caps, and packaging.
Confirm that the test certificate identifies the actual heat, batch, or serial number, not a generic product family.
Before installation, check the arrow, gasket or thread-seal compatibility, flange alignment, and upstream strainer requirement. Keep the drawing, quotation, certificates, dispatch record, and inspection photographs together; they support a defensible replacement record.
Frequently asked questions
What should you confirm before comparing Satyam multi check valve sellers?
Confirm whether the quotation covers a multi-door, spring-assisted wafer valve or a dual-plate check valve, then request the exact Satyam model or catalogue reference.
Which technical details belong in a comparable quotation?
Ask each seller to quote the same nominal size, pressure class, body and trim materials, end connection, seal material, temperature range, testing, certification, delivery terms, and warranty.
How do you match a multi check valve to the installation?
Check the fluid, operating pressure and temperature, flow direction, pipe orientation, available face-to-face length, flange standard, pump discharge conditions, and water-hammer risk.
How can you verify a Mumbai Satyam valve seller and delivered price?
Request current stock confirmation, the Satyam channel or authorisation evidence, a tax invoice, packing and test documents, freight and taxes, delivery timing, and an inspection procedure for the received valve.
